Ribbed Belt For A/C Compressor, Removing And Installing, 3.0L Engine: Installing
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:

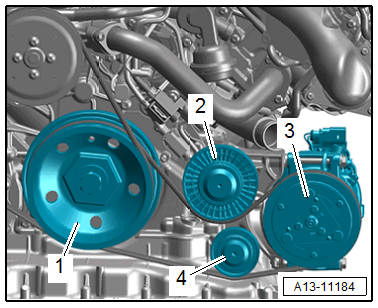

-- Install the ribbed belt. Refer to Figure.
-- To tension the A/C compressor ribbed belt the tensioner must be pivoted all the way counter-clockwise -arrow B- using the TORX T55 socket. (The tensioner remains in the tensioned position.)
-- Tighten the bolt -1-.
-- Check whether the ribbed belt is routed correctly.
-- Install the generator ribbed belt. Refer to RIBBED BELT FOR STARTER GENERATOR, REMOVING AND INSTALLING, 2.9L ENGINE or RIBBED BELT FOR GENERATOR, REMOVING AND INSTALLING, 3.0L ENGINE .
-- Start the engine and check the ribbed belt routing.
