Torque Converter, Draining
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Used Oil Collection And Extraction Unit:SMN372500 with Flexible Oil Extraction Probe - 6x700mm:SMN737952
Procedure
If the ATF becomes dirty due to shavings or during a major transmission overhaul, then the torque converter must be drained.

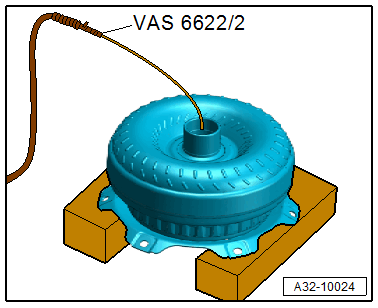

-- Place the torque converter as shown on two wooden blocks.
-- Extract the ATF from the torque converter using the :SMN372500 .
