Shaft for the parking lock, removing

• Drive Position Sensor -G676- removed. Refer to SHIFT MECHANISM .

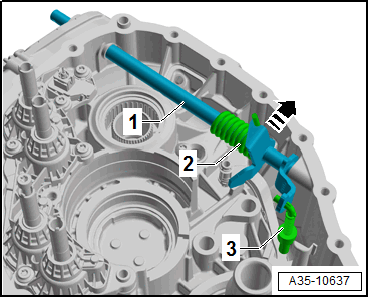

-- Disengage and release the tension of the spring -2- in the -direction of the arrow- from the shaft for the parking lock -1-.

Courtesy of AUDI

-- Disengage the rest linkage -3- on the shaft for the parking lock -1-.

-- Drive out the shaft for the parking lock -1- and sleeve -2- in the -direction of the arrow A- out of the clutch housing.

Courtesy of AUDI

-- Then pivot out the shaft for the parking lock -1- in the -direction of the arrow B- from the clutch housing.

Install the shaft for the parking lock 1

Fig 1: Install the Shaft for the Parking Lock -1-

Courtesy of AUDI

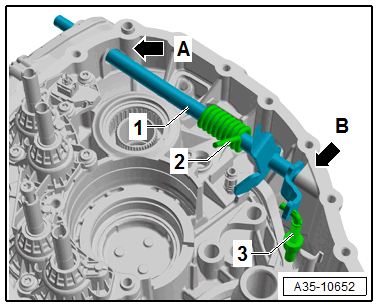

-- Guide the shaft from the parking lock -1- with the spring -2- in the hole in the clutch housing -arrow A-.

-- Then push back the shaft -1- in the mount in the clutch housing -arrow B- and engage in the rest linkage -3-.

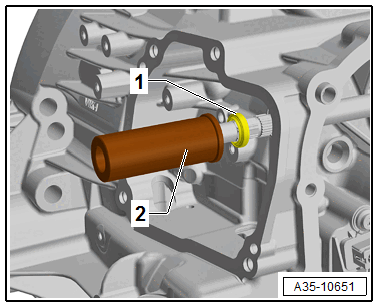

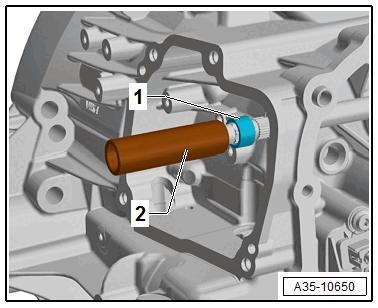

-- Drive in the sleeve -1- using the Extracting Tool - Thrust Piece:T40413/15  -2-.

Courtesy of AUDI

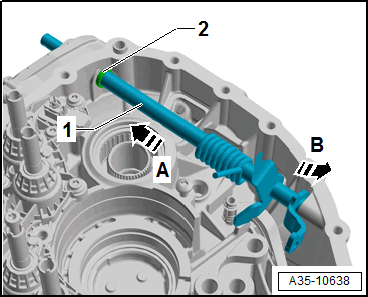

-- Drive in the seal -1- using the Extracting Tool - Guide Sleeve:T40413/14  -2-.

Courtesy of AUDI

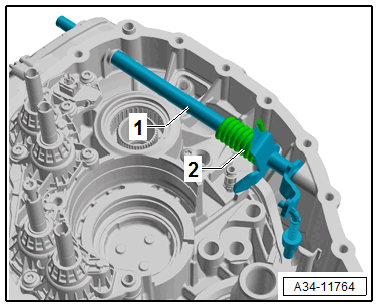

-- Engage the spring -2- in the shaft for the parking lock -1-.

Courtesy of AUDI

Tightening Specifications

• Refer to OVERVIEW - PARKING LOCK
