Inner Output Shaft, Disassembling And Assembling, Only Vehicles With Self-Locking Center Differential

Courtesy of AUDI

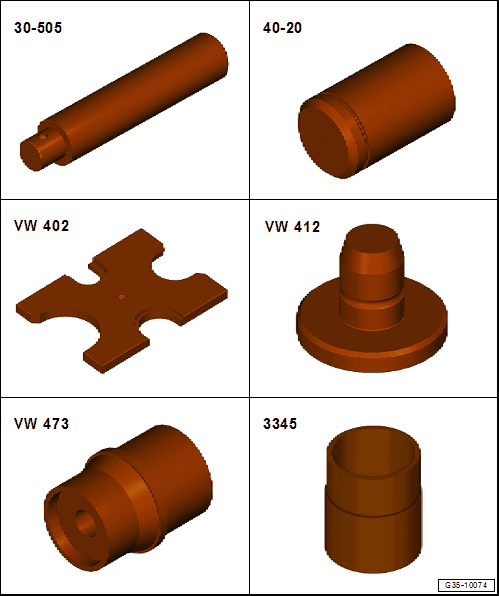

Special tools and workshop equipment required

• Locking Pin Driver:30-505
• Bearing Installer - Multiple Use:40-20
• Press Plate:VW402
• Press Piece - Multiple Use:VW412
• Press Piece - Multiple Use:VW473
• Bearing Installer - Wheel Bearing:3345

Special tools and workshop equipment required

• Valve Guide/Clutch Release Push Rod Seal Drift:10-206

  Courtesy of AUDI

• Piston Pin Drift:VW207
  Fig 1: Identifying Bearing Installer

  Courtesy of AUDI
• Socket - Xzn 18mm:T10162A
  Fig 2: Socket XZN 18 T10162

  Courtesy of AUDI
• Gearbox Assembly Tool:T40213A
  Fig 3: Assembly Tool T40213

  Courtesy of AUDI
• Extracting Tool - Adapter:T40413/7
• Extracting Tool - Pin:T40413/9

• Inner output shaft, removing. Refer to Inner Output Shaft Roller Bearing, Removing, Vehicles with Self-Locking Center Differential .

Disassembling

Courtesy of AUDI

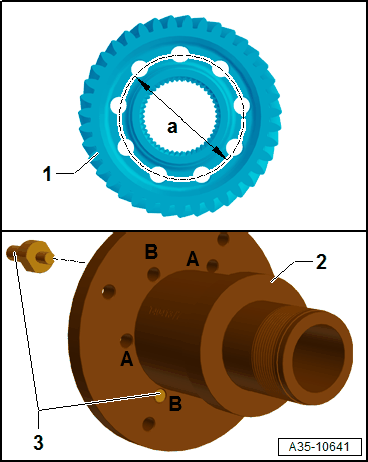

-- Depending on the diameter -a- install the three Extracting Tool - Pin:T40413/9  -3- in the Extracting Tool - Adapter:T40413/7  -2- in the hole in the gear for the inner output shaft -1-.

• Dimension -a- = 62 mm threaded holes -A-
• Dimension -a- = 64 mm threaded holes -B-

-- Bolt the Extracting Tool - Adapter:T40413/7  with the Gearbox Assembly Tool:T40213A  .

-- Tighten the Gearbox Assembly Tool:T40213A  in the vise or on the Gearbox Support:T40206  .

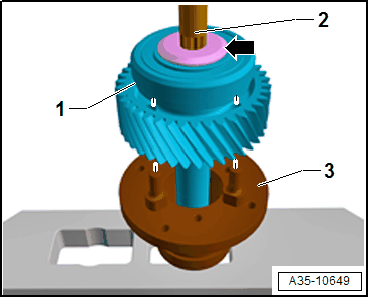

-- Position the inner output shaft -1- on the Extracting Tool - Adapter:T40413/7  -3-.

Courtesy of AUDI

-- Warm the bolt -arrow- to approximately 100 °C (212 °F).

-- Remove the bolt -arrow- with the Socket - Xzn 18mm:T10162A  -2- from the inner output shaft -1-.

TIP:

• The bolt from the output shaft has a very high loosening torque.

If when warning the bolt the oil pipe -3- in the inner output shaft is damaged it must be replaced.

Courtesy of AUDI

-- Drive out the oil pipe -3- using the Valve Guide/Clutch Release Push Rod Seal Drift:10-206  -2- and Piston Pin Drift:VW207  -1- in -direction of the arrow- out of the inner output shaft.

-- Drive in the new oil pipe on the opposite side again.

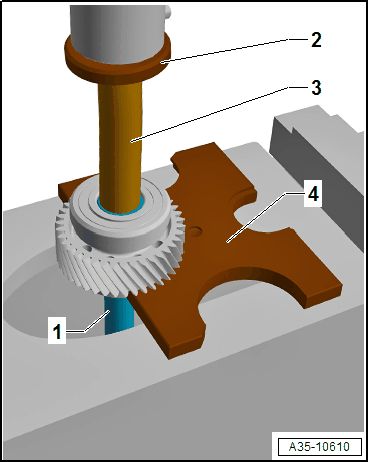

Inner output shaft 1, pressing out

Fig 4: Inner Output Shaft -1-, Pressing Out

Courtesy of AUDI

2 -  Press Piece - Multiple Use:VW412

3 -  Locking Pin Driver:30-505

4 -  Press Plate:VW402

• All additional components remaining on the Press Plate:VW402  must be secured from falling.

-- When removing the components in the sequence, at the same time pay attention to the installation position. Refer to OVERVIEW - OUTPUT SHAFT, VEHICLES WITH SELF-LOCKING CENTER DIFFERENTIAL .

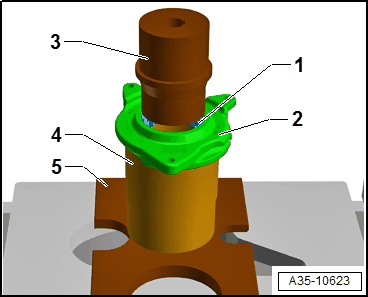

Roller bearing 1 from the bearing shell 2, pressing out

Fig 5: Roller Bearing -1- from the Bearing Shell -2-, Pressing Out

Courtesy of AUDI

3 -  Press Piece - Multiple Use:VW473

4 -  Bearing Installer - Wheel Bearing:3345

5 -  Press Plate:VW402

• Remove the locking ring  OVERVIEW - OUTPUT SHAFT, VEHICLES WITH SELF-LOCKING CENTER DIFFERENTIAL beforehand.

Assembling

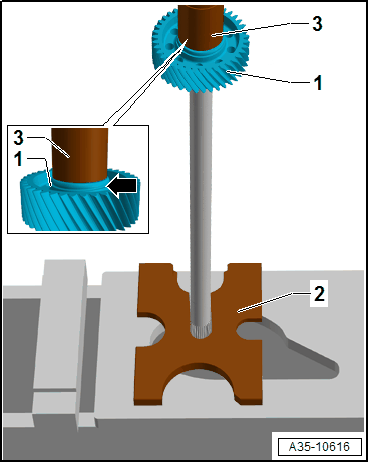

Drive wheel for spur gear unit 1, pressing on

Fig 6: Drive Wheel for Spur Gear -1-, Pressing On

Courtesy of AUDI

2 -  Press Plate:VW402

3 -  Bearing Installer - Multiple Use:40-20

• Installation position: the groove -arrow- from the drive wheel for spur gear unit -1- points to the Bearing Installer - Multiple Use:40-20  .

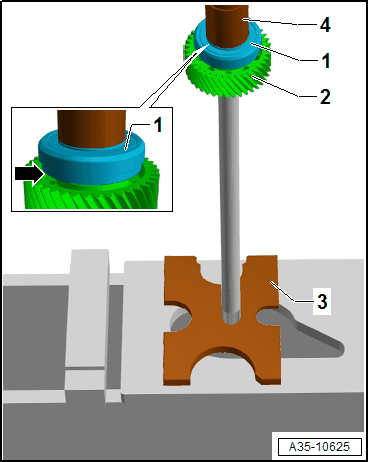

Ball bearing 1, pressing on

Fig 7: Ball Bearing -1-, Pressing On

Courtesy of AUDI

3 -  Press Plate:VW402

4 -  Bearing Installer - Multiple Use:40-20

• Installation position: the shoulder -arrow- points to the drive wheel for spur gear unit -2-.

-- Depending on the diameter -a- install the three Extracting Tool - Pin:T40413/9  -3- in the Extracting Tool - Adapter:T40413/7  -2- in the hole in the gear for the inner output shaft -1-.

Courtesy of AUDI

• Dimension -a- = 62 mm threaded holes -A-
• Dimension -a- = 64 mm threaded holes -B-

-- Bolt the Extracting Tool - Adapter:T40413/7  with the Gearbox Assembly Tool:T40213A  .

-- Tighten the Gearbox Assembly Tool:T40213A  in the vise or on the Gearbox Support:T40206  .

-- Position the inner output shaft -1- on the Extracting Tool - Adapter:T40413/7  -3-.

Courtesy of AUDI

-- Clean the internal threads of the inner output shaft with a thread tap.

-- Install the new bolt -arrow- using the Socket - Xzn 18mm:T10162A  -2- and tighten.

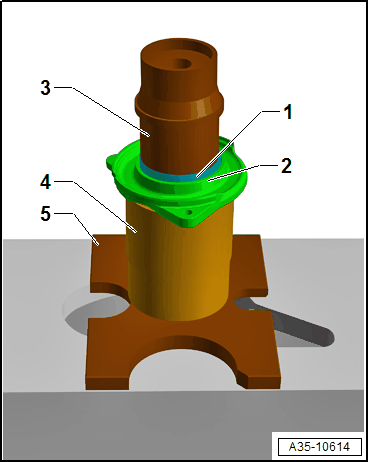

Roller bearing 1 in the bearing shell 2, pressing in

Fig 8: Roller bearing -1- in the Bearing Shell -2-, Pressing in

Courtesy of AUDI

3 -  Press Piece - Multiple Use:VW473

4 -  Bearing Installer - Wheel Bearing:3345

5 -  Press Plate:VW402

• Position the roller bearing -1- with the lettered side (larger panel thickness) to the Press Piece - Multiple Use:VW473  -3-.

-- Install the circlip  OVERVIEW - OUTPUT SHAFT, VEHICLES WITH SELF-LOCKING CENTER DIFFERENTIAL.

Tightening Specifications

• Refer to OVERVIEW - OUTPUT SHAFT, VEHICLES WITH SELF-LOCKING CENTER DIFFERENTIAL
