Input Shaft 1, Disassembling And Assembling: Notes

Courtesy of AUDI

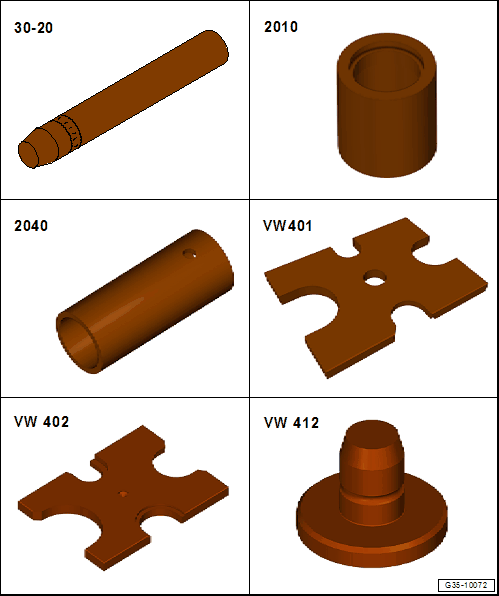

Special tools and workshop equipment required

• Drive Sleeve:30-20
• Press Piece - Trailing Arm:2010
• Press Piece - Front Control Arm:2040
• Press Plate:VW401
• Press Plate:VW402
• Press Piece - Multiple Use:VW412

Special tools and workshop equipment required

• Thrust Piece:T10431/1
  Fig 1: Identifying Assembly Tool T10431

  Courtesy of AUDI
• Wishbone Rubber Mount Assembly Tool:T10219/1

  Courtesy of AUDI

• Press Tool:T40323

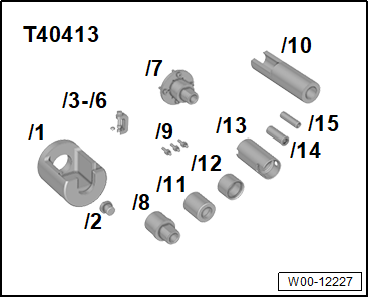

• Extracting Tool - Press In Piece:T40413/11

  Courtesy of AUDI

• Input shaft 1, removed. Refer to INPUT SHAFT 1, REMOVING AND INSTALLING INDIVIDUALLY .

Disassembling

If necessary, remove the sensor wheel:

Press off the sensor wheel 2

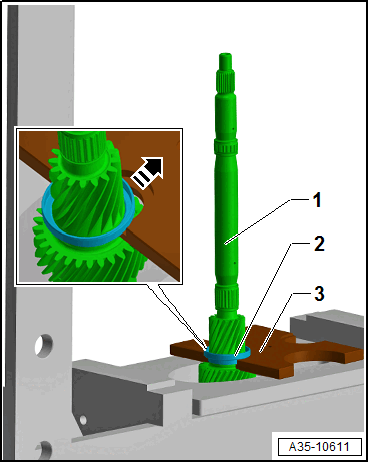

Fig 2: Press off the sensor wheel -1-

Courtesy of AUDI

-- Insert the input shaft -1- with the sensor wheel -2- in the corresponding groove of the Press Plate:VW402  -3-.

-- Press off the input shaft -1- downward.

Input shaft 1, pressing out

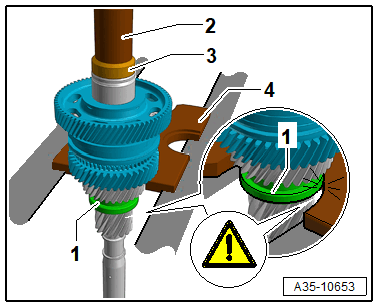

Fig 3: Input shaft 1, pressing out

Courtesy of AUDI

2 -  Thrust Piece:T10431/1

3 -  Press Tool - Thrust Piece:T40323/5

4 -  Press Plate:VW 402

• If not removed, make sure that the sensor wheel -1- is not damaged.
