Input Shaft 1, Removing And Installing Individually: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

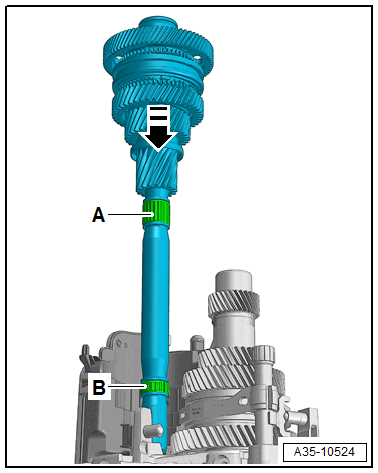

-- Carefully guide the input shaft 1 into the gear set -arrow-. While doing so, make sure the needle bearings -A and B- are installed correctly.

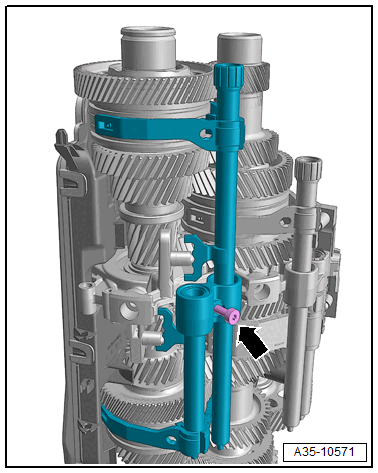

-- Position the shift forks and secure with the bolt -arrow-.
AWD Vehicles

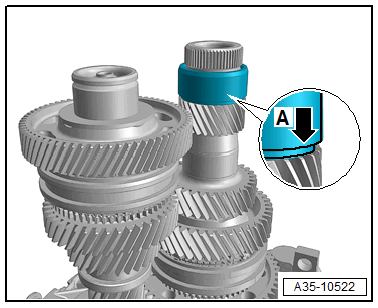

-- Warm the bearing inner race using the Inductive Heater:VAS 6414 to approximately 100 °C (212 °F) and push in all the way downward with the shoulder -arrow A-.

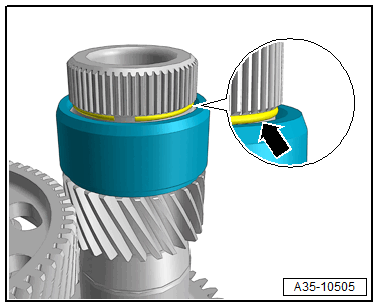

-- Install the circlip -arrow-.
-- Install the gear set. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
