Overview - Gear Set, Vehicles Without Self-Locking Center Differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Oil Pipe
- Bolt
- M6 X 30
- Replace after removing
- 3 Nm +90°
- Gear Actuator
- Transmission Input Speed Sensor 1 -G632-
- Transmission Input Speed Sensor 2 -G612-
- Gear Position Distance Sensor 1 -G487-
- Gear Position Distance Sensor 2 -G488-
- Gear Position Distance Sensor 3 -G489-
- Gear Position Distance Sensor 4 -G490-
- Removing and Installing. Refer to GEAR ACTUATOR MODULE AND HYDRAULIC PRESSURE RESERVOIR, REMOVING AND INSTALLING .
- Seal
- Replace after removing
- Oil Pan
- Replace after removing
- Bolt
- M6 X 30
- Replace after removing
- 3 Nm +90°
- Seal
- Replace after removing
- Hydraulic Pressure Reservoir
- Draining. Refer to ATF PUMP, DEACTIVATING AND DRAINING THE HYDRAULIC PUMP RESERVOIR .
- Removing and Installing. Refer to GEAR ACTUATOR MODULE AND HYDRAULIC PRESSURE RESERVOIR, REMOVING AND INSTALLING .
- Disposing. Refer to HYDRAULIC PRESSURE RESERVOIR, DISPOSING .
- Bolts
- M6 X 30
- Replace after removing
- 3 Nm +90°
- Gear Set
- Removing and Installing. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Disassembling and Assembling. Refer to GEAR SET, DISASSEMBLING AND ASSEMBLING .
- Bolts
- M6 X 50
- Gearshift rail gear actuator module
- 6 Nm +30°

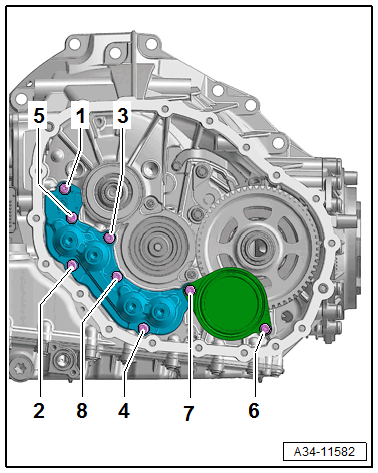

Gear actuator and pressure reservoir - tightening specification and sequence
- Replace the bolts after removing them.
-- Tighten the bolts in two steps in the sequence shown:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1 | -1 to 8- | 3 Nm |
| 2 | -1 to 8- | 90° |
