Gear Set, Disassembling And Assembling: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

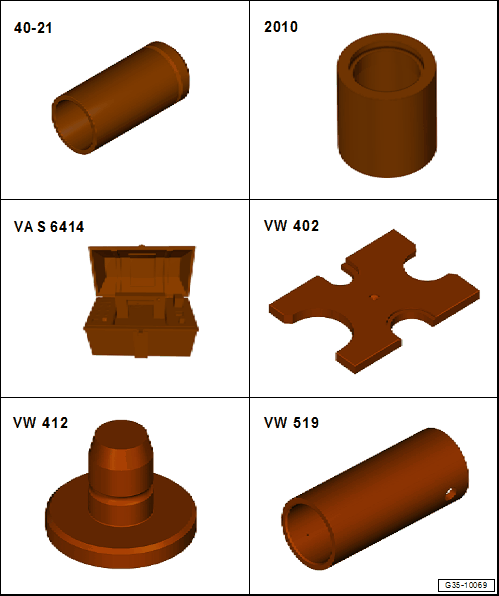

Special tools and workshop equipment required
- Bearing Installer - Differential Bearing:40-21
- Press Piece - Trailing Arm:2010
- Inductive Heater:VAS 6414
- Press Plate:VW402
- Press Piece - Multiple Use:VW412
- Press Piece - Multiple Use:VW519

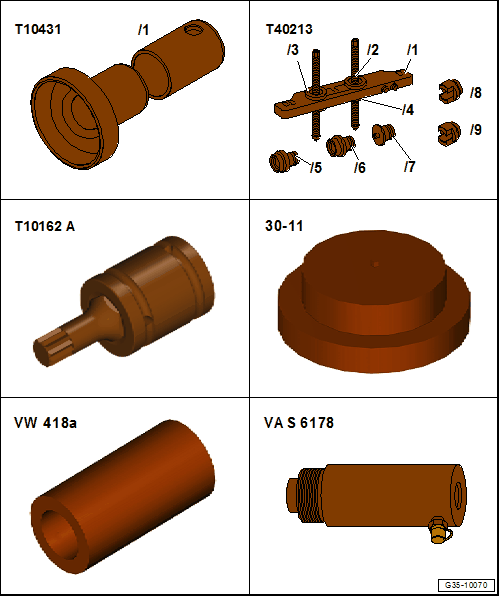

Special tools and workshop equipment required
- Thrust Piece:T10431/1
- Gearbox Assembly Tool:T40213A
- Socket - Xzn 18mm:T10162A
- Press Piece - Multiple Use:30-11
- Press Piece - 31.5mm:VW418A
- Hydraulic Press:VAS 6178

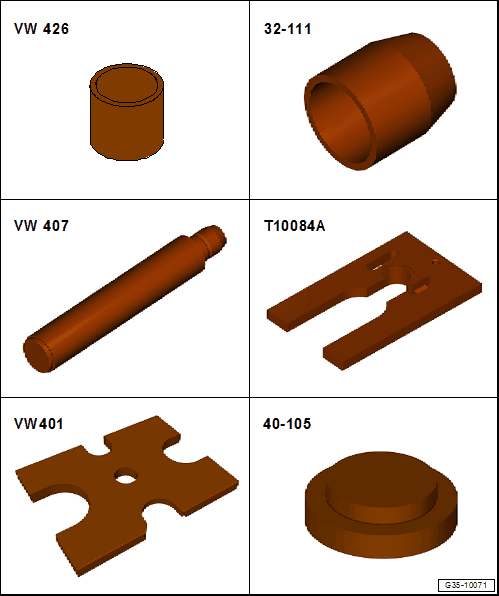

Special tools and workshop equipment required
- Press Piece - Multiple Use:VW426
- Bearing Installer - Multiple Use:32-111
- Press Piece - Rod:VW407
- Bearing Installer - Bearing Press Plate:T10084A
- Press Plate:VW401
- Press Piece - Multiple Use:40-105
Special tools and workshop equipment required
- Valve Guide/Clutch Release Push Rod Seal Drift:10-206
- Press Piece - Rod:VW408A
- Exhaust Pipe Wedge Set:3140A
- Hot Air Blower:V.A.G 1416 or Wiring Harness Repair Set - Hot Air Blower: VAS 1978/14A
- Two-Arm Puller:VAS 251 001
- Thrust Piece:T10205/13 from the Bearing Installer - Wheel Hub/Bearing Kit:T10205A
- Extracting Tool:T40413
Disassembling
- Gear set removed. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Oil pan removed OVERVIEW - GEAR SET, VEHICLES WITHOUT SELF-LOCKING CENTER DIFFERENTIAL.
