Bearing Bracket, Disassembling And Assembling: Notes

Courtesy of AUDI

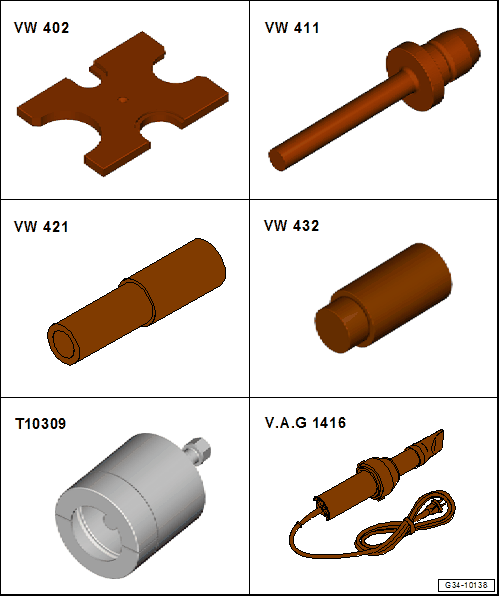

Special tools and workshop equipment required

• Press Plate:VW402
• Press Piece - Rod:VW411
• Press Piece - 28x100mm:VW421
• Press Piece - Bushing - 50mm Diameter:VW432
• Puller - Transmission Gears - Thrust Piece:T10309/5
• Hot Air Blower:V.A.G 1416  or Wiring Harness Repair Set - Hot Air Blower: VAS 1978/14A

Special tools and workshop equipment required

• Gearbox Assembly Tool:T40213A
  Fig 1: Assembly Tool T40213

  Courtesy of AUDI
• Two-Arm Puller:VAS 251 001

  Courtesy of AUDI

• Extracting Tool:T40413

Disassembling

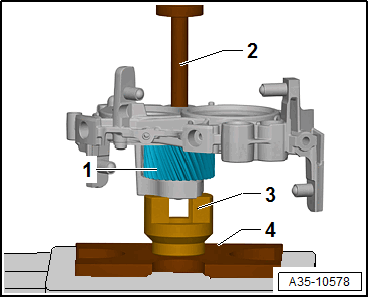

Press out the shaft for the reverse gear intermediate sprocket 1

Fig 2: Press Out the Shaft for the Reverse Gear Intermediate Sprocket -1-

Courtesy of AUDI

2 -  Press Piece - Rod:VW411

3 -  Gearbox Assembly Tool - Adapter:T40213/9

4 -  Press Plate:VW402

• Remove the locking ring  OVERVIEW - BEARING BRACKET beforehand.

-- Remove the reverse gear intermediate sprocket, needle bearing and thrust washers from the bearing bracket.

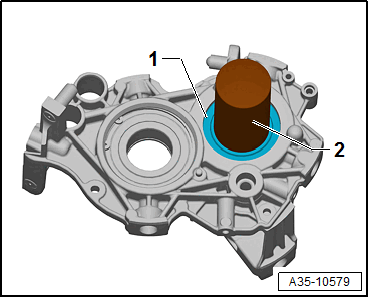

Drive out the input shaft ball bearing 1

Fig 3: Drive Out the Input Shaft Ball Bearing -1-

Courtesy of AUDI

2 -  Press Piece - Bushing - 50mm Diameter:VW432

• Reverse gear intermediate sprocket is removed. Refer to Fig 2.
• Remove the bolts  OVERVIEW - BEARING BRACKET beforehand and remove the retaining plate for the bearing  OVERVIEW - BEARING BRACKET.
• Tension the bearing bracket in a vise.

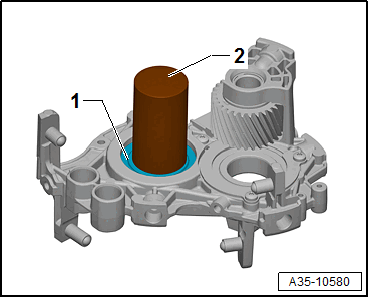

Drive out the output shaft ball bearing 1

Fig 4: Drive Out the Output Shaft Ball Bearing -1-

Courtesy of AUDI

2 -  Press Piece - Bushing - 50mm Diameter:VW432

• Remove the locking ring  OVERVIEW - BEARING BRACKET beforehand.
• Tension the bearing bracket in a vise.
