Transmission Output Shaft Seal, Replacing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Lightly coat the outer edge of the seal.
-- Fill the space between the sealing lip and the dust lip halfway with Sealing Grease.

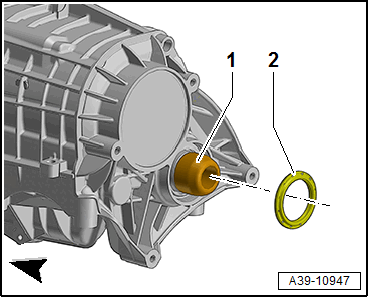

-- Position the seal with the Assembly Device - Sleeve: T40367/1 .

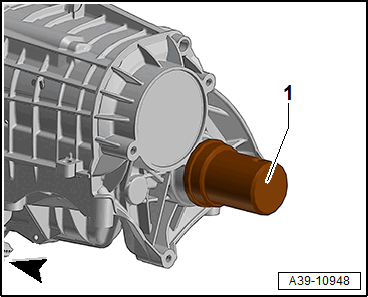

-- Press in the seal all the way using the Assembly Device - Thrust Piece:T40367/2 .
-- Install the all-wheel drive clutch. Refer to the appropriate Service Information. .
-- Install the driveshaft. Refer to the appropriate Service Information. .
