Right Seal, Replacing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Lightly oil the outer edge of the new seal.

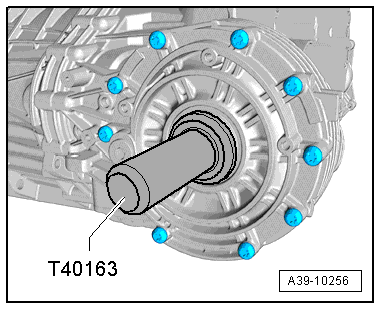

-- Drive in the seal all the way without tilting using the Seal Installer - Flange Shaft:T40163 .
-- Fill the space between the sealing lip and the dust lip halfway with Sealing Grease.
-- Install the right flange shaft. Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING .
