Overview - Drive Pinion
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

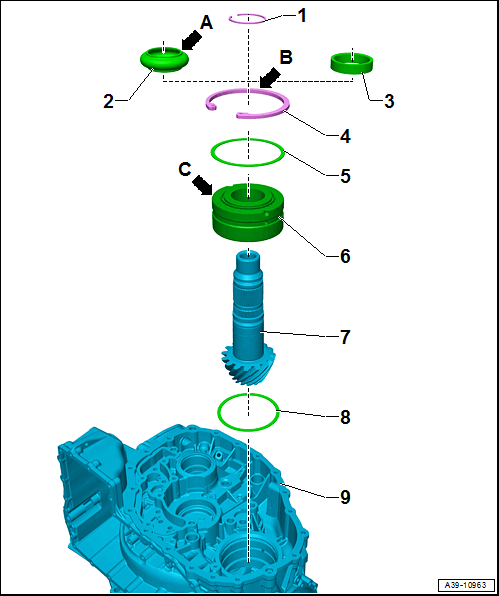

- Circlip
- For the pinion preload sleeve
- Replace after removing
- Preload Sleeve
- Equipment version: vehicles without final drive reinforcement
- Replace after removing
- Installation position: the high collar -arrow A- points upward to the circlip
- Sleeve
- Equipment version: vehicles with final drive reinforcement
- Circlip
- Insert in the groove all around the transmission housing
- Installation position: the bevel -arrow B- points upward and the flat side points to the double angular contact ball bearing.
- Shim "S 4
"
- Selecting thickness. Refer to PINION, ADJUSTING .
- Double Angular Contact Ball Bearing
- Replace after removing
- Installation position: the groove all around -arrow C- points upward to the preload sleeve
- Removing and Installing. Refer to PINION, REMOVING AND INSTALLING .
- Pinion
- Can be replaces separately. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to PINION, REMOVING AND INSTALLING .
- Adjusting. Refer to PINION, ADJUSTING .
- Shim "S3
"
- Selecting thickness. Refer to PINION, ADJUSTING .
- Transmission Housing
