Final Drive, Adjusting When Replacing Differential Or Differential Bearing: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

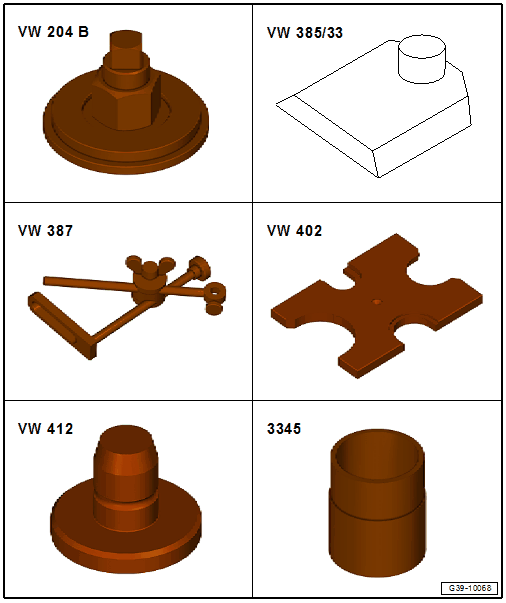

Special tools and workshop equipment required

Seal Installer - Crankshaft:VW 204 B
Measuring Set - End Gauge:VW 385/33
Dial Indicator Holder:VW 387
Press Plate:VW 402
Press Piece - Multiple Use:VW 412
Bearing Installer - Wheel Bearing:3345

Courtesy of AUDI

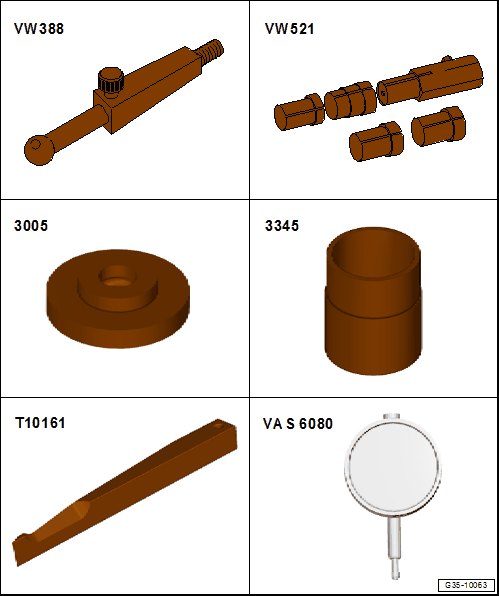

Special tools and workshop equipment required

Measuring Lever:VW 388
Crown Wheel Adjusting Tool:VW 521
Press Piece - Multiple Use:3005
Bearing Installer - Wheel Bearing:3345
Drive Axle Wedge Tool:T10161
Dial Gauge for example Dial Gauge - 0-3mm:VAS 6080A

TIP:

Careful adjustment of the differential is important for service life and smooth running of final drive.

Adjusting the final drive (differential) is required if the differential and the differential bearing are being replaced.
The drive pinion remains installed, for this reason the adjustment backlash must always be achieved. Otherwise the drive train will be damaged!
The transmission is secured to the assembly stand and the flywheel with the right flange shaft is removed.

Total Shim Thickness "S _total " for Shims "S ₁ " + "S ₂ ", Determining

-- Remove the left tapered roller bearing outer race from the transmission housing. Refer to Figure.

-- Drive the new outer race for left tapered roller bearing with the old shim "S₂ " with the example thickness of 1.05 mm into the transmission housing.

Fig 1: Driving Outer Race For Tapered Roller Bearing With Shim Into Transmission Housing

Courtesy of AUDI

For the initial measurement, install the old shim "S₂ " with a thickness for example of 1.05 mm. This will be indicated by "S₂ *" in the following. After determining the torsional backlash, "S₂ *" is replaced by final "S ₂ ".

-- Press in the new outer race for the right angular contact ball bearing with the old shim "S ₁ " in for example of 1.21 mm in the final drive cover. The larger diameter of the Seal Installer - Crankshaft:VW 204 B faces the outer race.

Fig 2: Identifying Outer Race Tapered Bearing, Installation

Courtesy of AUDI

-- Insert the differential into the transmission housing.

CAUTION:

Danger of causing damage to the gear set.

Check the torsional backlash when tightening the final drive cover. Some play must always be present.
If the transmission is disassembled, the play at the pinion can be checked by turning back and forth.
If transmission is not disassembled, install the Crown Wheel Adjusting Tool:VW 521 and check play.

-- Fasten the final drive cover carefully with four bolts diagonally to 20 Nm.
