Drive Pinion, Disassembling And Assembling

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Special tools and workshop equipment required

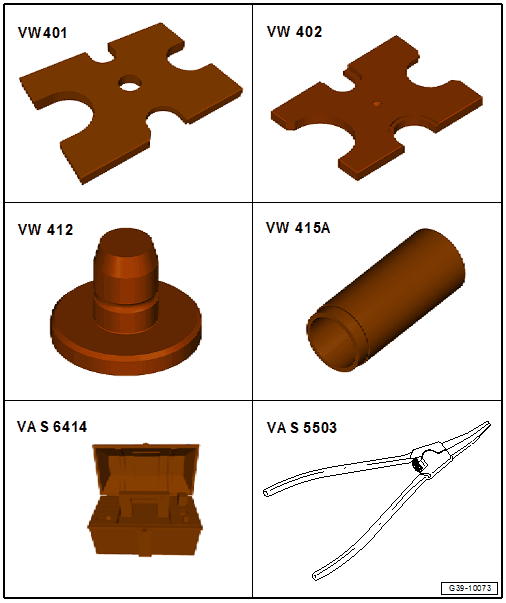

Press Plate:VW 401
Press Plate:VW 402
Press Piece - Multiple Use:VW 412
Press Piece - 60mm:VW 415A
Inductive Heater:VAS 6414
Circlip Pliers:VAS 5503A

Special tools and workshop equipment required

Splitter (Kukko 17/2):VAS 251 411

Courtesy of AUDI
Press Piece - Bushing:VAS 3118

Courtesy of AUDI
Extracting Tool - Thrust Piece:T40413/13

Remoce the circlip 1 from the pinion, vehicle without electric drive motor:

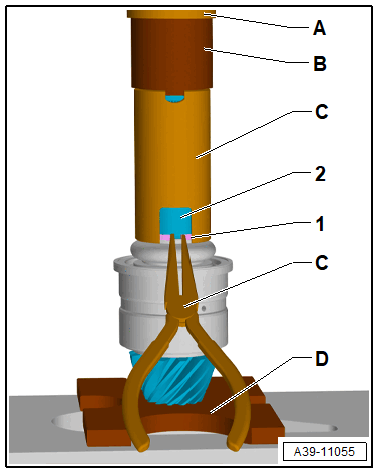

Fig 1: Remove the Circlip for the Preload Sleeve -1- from the Pinion

Courtesy of AUDI

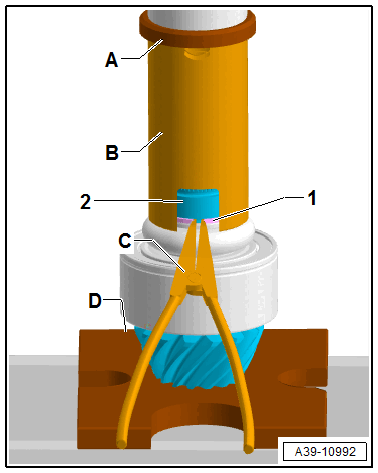

Position the Thrust Piece:T40413/13 on the pinion -2- so that the groove on the circlip -1- is in the center of the large opening on the Thrust Piece.

A - Press Piece - Multiple Use:VW412

B - Extracting Tool - Thrust Piece:T40413/13

C - Circlip Pliers:VAS 5503A

D - Press Plate:VW 402

-- Push the preload sleeve together until the circlip -1- can be removed from the groove of the pinion -2-.

Remove the circlip 1 from the pinion, vehicle with electric drive motor:

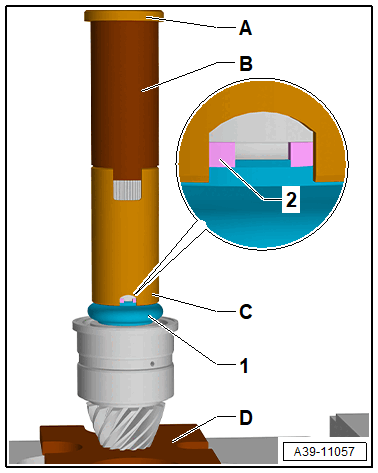

Fig 2: Remove the circlip -1- from the pinion, vehicle with electric drive motor:

Courtesy of AUDI

Position the Thrust Piece:T40413/13 on the pinion -2- so that the groove on the circlip -1- is in the center of the large opening on the Thrust Piece.

A - Press Piece - Multiple Use:VW412

B - Press Piece - Bushing:VAS 3118

C - Extracting Tool - Thrust Piece:T40413/13

D - Circlip Pliers:VAS 5503A

E - Press Plate:VW 402

-- Push the preload sleeve together until the circlip -1- can be removed from the groove of the pinion -2-.

Continuation for all vehicles

Remove the double angular contact ball bearing 2

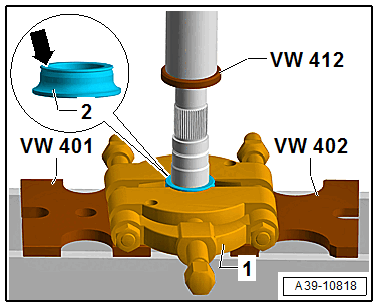

Fig 3: Remove the Double Angular Contact Ball Bearing -2-

Courtesy of AUDI

-- Secure the pinion -3- from falling.

Splitter (Kukko 17/2):VAS 251 411

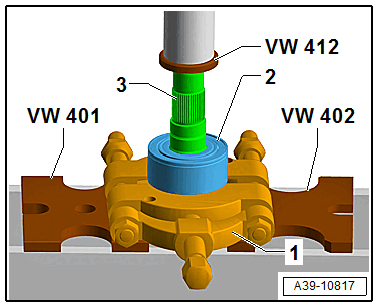

If the lower inner race of the double angular contact ball bearing stays on the pinion, it must be removed separately using the Splitter, for example KUKKO 17-2:VAS 251 411 -1-.

Remove the inner race of the double angular contact ball bearing 2

Fig 4: Remove the Inner Race of the Double Angular Contact Ball Bearing -2-

Courtesy of AUDI

-- Secure the pinion from falling.

-- Secure the Separating Tool -1- in the groove of the inner races -arrow-.

Press on the double angular contact ball bearing 1 onto the pinion, vehicles without electric drive motor

Fig 5: Press the Double Angular Contact Ball Bearing -1- on the Pinion

Courtesy of AUDI

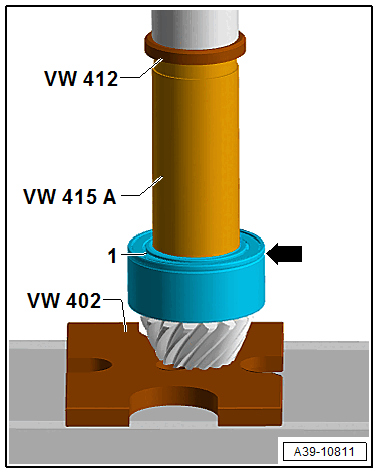

Installation position of the double angular contact ball bearing -1- : the groove all around -all arrow- points upward to the pressing tool.

-- Warm the double angular contact ball bearing using the Inductive Heater:VAS 6414 to approximately 100 °C (212 °F) and press in all the way.

Press on the double angular contact ball bearing 1 onto the pinion, vehicles with electric drive motor

Fig 6: Press on the double angular contact ball bearing -1- onto the pinion, vehicles with electric drive motor

Courtesy of AUDI

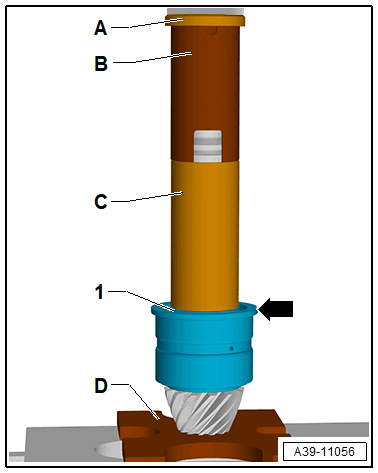

Installation position of the double angular contact ball bearing -1- : the collar -arrow- points upward to the pressing tool.

A - Press Piece - Multiple Use:VW412

B - Extracting Tool - Thrust Piece:T40413/13

C - Press Piece - 60mm:VW 415A

D - Press Plate:VW 402

-- Warm the double angular contact ball bearing using the Inductive Heater:VAS 6414 to approximately 100 °C (212 °F) and press in all the way.

Continuation for all vehicles

Install the circlip 1 on the pinion as follows:

Fig 7: Install the Circlip -1- on the Pinion as Follows:

Courtesy of AUDI

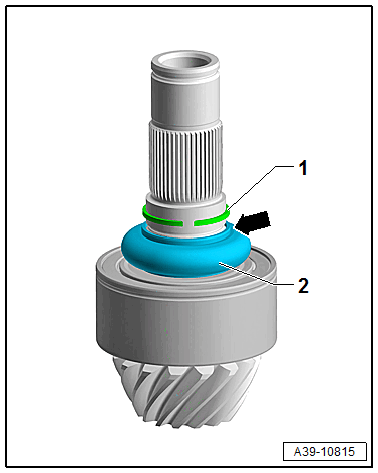

-- Fist install a new preload sleeve -2- in the installation position.

Installation position of the preload sleeve: the higher collar -arrow- points to the circlip -1-.
Push a new circlip -1- all the way on the preload sleeve.

Bring the circlip for the preload sleeve 2 into installation position, vehicles without electric drive motor

Fig 8: Bring the Circlip for the Preload Sleeve -2- into Installation Position

Courtesy of AUDI

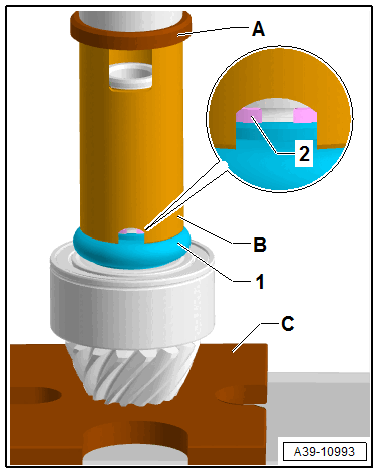

Position the Thrust Piece:T40413/13 on the pinion so that the groove on the circlip -2- is in the center of the small opening on the Thrust Piece.

A - Press Piece - Multiple Use:VW412

B - Extracting Tool - Thrust Piece:T40413/13

C - Press Plate:VW402

-- Carefully press the preload sleeve -1- together using the shop press.

CAUTION:

Risk of damaging the preload sleeve

Carefully raise the force only until it engages.
If the preload sleeve is pressed together too much, it can loose its tension force and must be replaced.

Bring the circlip for the preload sleeve 2 into installation position, vehicles with electric drive motor

Fig 9: Bring the circlip for the preload sleeve -2- into installation position, vehicles with electric drive motor

Courtesy of AUDI

Position the Thrust Piece:T40413/13 on the pinion so that the groove on the circlip -2- is in the center of the small opening on the Thrust Piece.

A - Press Piece - Multiple Use:VW412

B - Press Piece - 60mm:VW 415A

C - Extracting Tool - Thrust Piece:T40413/13

D - Press Plate:VW402

-- Carefully press the preload sleeve -1- together using the shop press.

CAUTION:

Risk of damaging the preload sleeve

Carefully raise the force only until it engages.
If the preload sleeve is pressed together too much, it can loose its tension force and must be replaced.

Vehicles with final drive reinforcement

The pinions can only be differentiated on the sleeve OVERVIEW - DRIVE PINION or preload sleeve OVERVIEW - DRIVE PINION.

Bring the circlip for the pinion 2 into installation position

Fig 10: Bring the circlip for the pinion -2- into installation position

Courtesy of AUDI

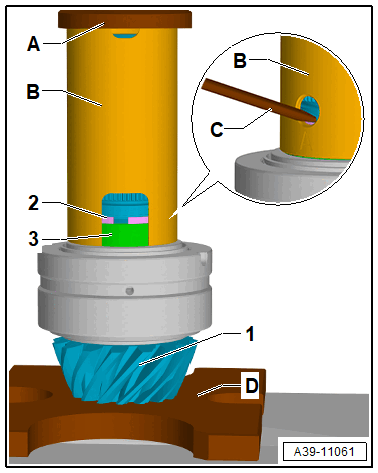

Position the Thrust Piece:T40413/13 -B- on the pinion -1- so that the groove on the circlip -2- is in the center of the large opening on the Thrust Piece.

A - Press Piece - Multiple Use:VW412

B - Extracting Tool - Thrust Piece:T40413/13

C - Screwdriver

D - Press Plate:VW 402

-- Press together the double angular contact ball bearing so far, until the sleeve -3- lowered so far that the circlip -2- can be inserted into the groove.

-- Using a screwdriver -C- the position of the circlip -2- in the groove can be corrected through the hole in the Extracting Tool - Thrust Piece:T40413/13 .

Continuation for all vehicles

-- The circlip must engage audibly in the pinion groove all around.

-- After pressing check that the circlip is in the groove all around.
