Right Flange Shaft, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Circlip Pliers:VAS 5503A

Courtesy of AUDI
Used Oil Collection and Extraction Unit:SMN372500

Fig 1: Identifying Used Oil Collection And Extraction Unit
Courtesy of AUDI
Puller - Flanged Shaft:T10037

Fig 2: Identifying Flanged Shaft
Courtesy of AUDI
Adapter:T10037/2

Courtesy of AUDI
Sealing Grease. Refer to the appropriate Electronic Parts Information.

Removing

The transmission is installed.

-- Remove the right drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the right drive axle heat shield. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the transmission.

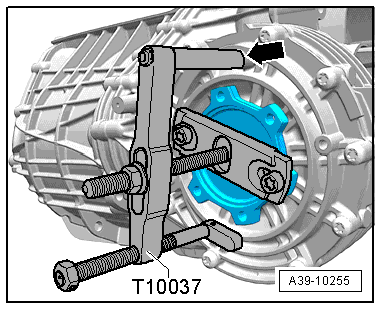

-- Remove right flange shaft by fastening Puller - Flanged Shaft:T10037 to transmission housing -arrow-.

Fig 3: Identifying Right Flange Shaft By Fastening T10037

Courtesy of AUDI

-- Use the Adapter:T10037/2 , if necessary.
