Left Flange Shaft, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- The transmission is installed.
-- Remove the left drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
-- Remove the left drive axle heat shield. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .
-- Remove the left shock absorber fork. Refer to TOWER BRACE, REMOVING AND INSTALLING .
-- Remove the bolts -arrows- from the flange shaft mounting bracket.

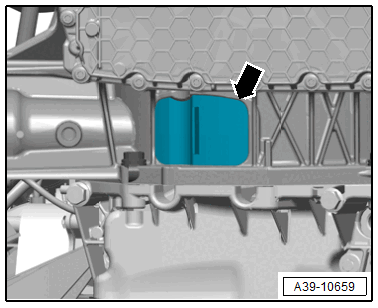

-- Remove the lower cover -arrow- from the transmission.
CAUTION:
Risk of damaging the seal between the final drive and the transmission housing when removing the flange shaft.
- If the flange shaft -arrow- is not central, the seal from the flange shaft splines will be damaged.
- A seal must be replaced if it is damaged.
-- To avoid damaging the seal, support and guide the flange shaft out of the opening in the transmission.
-- Remove the left flange shaft from the transmission -arrow A-.
- Ignore -items 1 and 3- and -arrow B-.
