Left Flange Shaft, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
CAUTION:
Risk of damaging the seal between the final drive and the transmission housing when installing the flange shaft.

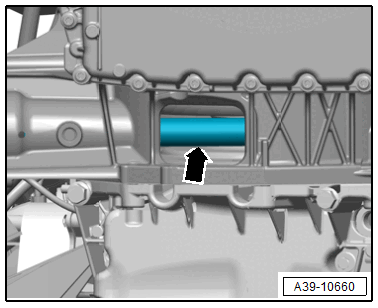

- If the flange shaft -arrow- is not central, the seal from the flange shaft splines will be damaged.
- A seal must be replaced if it is damaged.
-- To avoid damaging the seal when inserting the flange shaft, support and guide the flange shaft into the opening in the transmission.
-- Slide the left flange shaft -2- into the transmission -arrow B-. When doing this, insert the flange shaft centrally into the seal on the front differential -arrow 3-.
-- Install the shock absorber fork. Refer to SHOCK ABSORBER FORK, REMOVING AND INSTALLING .
