Differential, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transmission. Refer to the appropriate Service Information. .

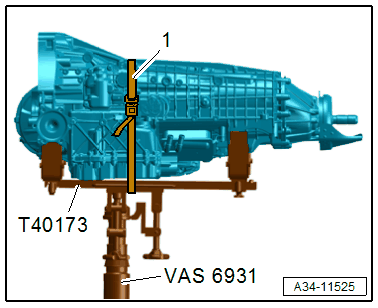

- The transmission is secured on the Gearbox Support:T40173 with the tensioning strap -1-.
-- Tilt the transmission using the Gearbox Support:T40173 toward the rear and slightly left so that no transmission fluid flows out.
-- Place the Shop Crane - Drip Tray:VAS 6208 under the transmission.
-- Remove the right flange shaft. Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING .
-- Remove the bolts -arrows- and remove the final drive cover -1-.
CAUTION:
Danger of causing damage to the differential.
- Slowly and carefully remove final drive cover from transmission housing. Otherwise differential can fall out of transmission.
- A differential that has fallen out can no longer be installed.
-- Carefully remove the final drive cover. At the same time some transmission fluid will drain out.
-- Carefully remove the differential -1- and lay it on a soft support.
-- While doing so, do not lift the differential at the angular contact ball bearing cage -2-, but rather grab inside the hole -arrow- for the right flange shaft.
- If the left outer race/tapered roller bearing for the differential is being replaced, the left flange shaft must be removed beforehand. Refer to LEFT FLANGE SHAFT, REMOVING AND INSTALLING .
