Differential, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Gearbox Support:T40173A

Fig 1: Gearbox Support T140173
Courtesy of AUDI
Engine and Gearbox Jack:VAS 6931

Fig 2: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI
Puller - Flanged Shaft:T10037

Fig 3: Identifying Flanged Shaft
Courtesy of AUDI
Shop Crane - Drip Tray:VAS 6208

Fig 4: Identifying Drip Tray
Courtesy of AUDI

Before performing assembly work on the differential, drain the transmission fluid, secure the transmission on the assembly stand, and remove the clutch module with the right flange shaft. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .

Conditions

Courtesy of AUDI

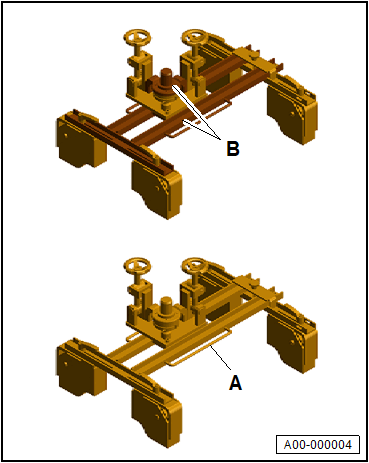

Gearbox Support:T40173 with yellow chrome plated mount and joint housing -B- or applicable CE identification -A-.
