Differential, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

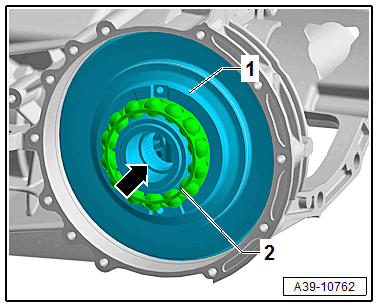

-- Install the differential -1-.
-- While doing so, do not lift the differential at the angular contact ball bearing cage -2-, but rather grab inside the hole -arrow- for the right flange shaft.

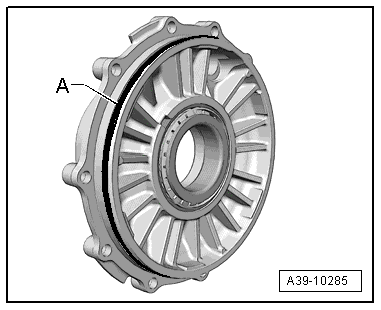

-- Replace the O-ring -A- on the final drive cover and coat it with transmission fluid.

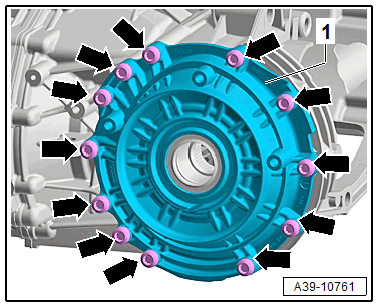

-- Insert the final drive cover -1- and tighten the bolts -arrows-.
-- Install the right flange shaft. Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING .
-- If removed install the left flange shaft. Refer to LEFT FLANGE SHAFT, REMOVING AND INSTALLING .
-- Fill the transmission fluid after installing the transmission and check the transmission fluid level. Refer to Transmission Fluid .
