Center Differential, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

The transmission is installed.

-- Remove the driveshaft. Refer to the appropriate Service Information. .

-- Drain the transmission fluid. Refer to TRANSMISSION FLUID .

CAUTION:

Transmission components could be damaged.

The self-locking center differential is pretensioned with a pressure spring.
Carefully remove the center differential housing from the transmission toward the rear. Otherwise the center differential could fall out of the transmission.

-- Remove the bolts from the self-locking center differential housing in the following sequence: -11 to 1-.

Fig 1: Center Differential Housing - Tightening Sequence

Courtesy of AUDI

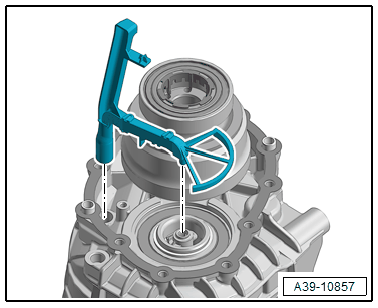

-- Remove the oil guide piece.

Courtesy of AUDI

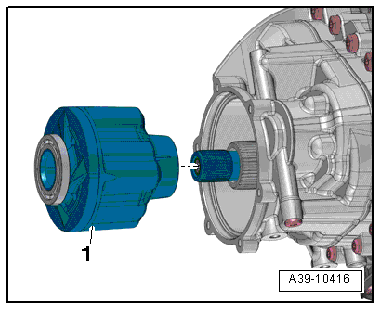

-- Secure the center differential -1- so it does not fall out or remove it toward the rear from the input shaft.

Fig 2: Identifying Center Differential -1- At Input Shaft

Courtesy of AUDI
