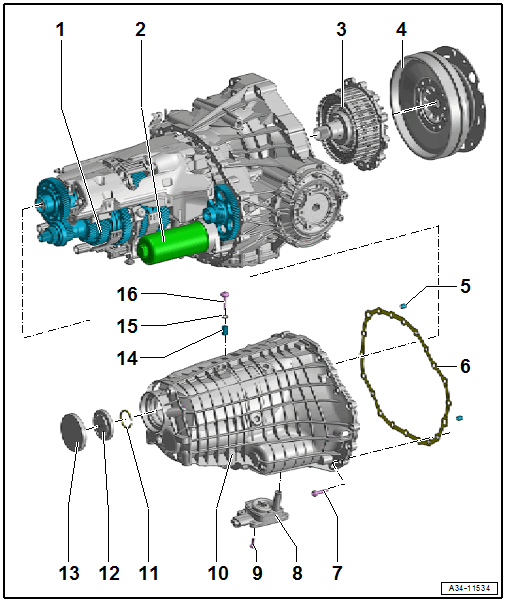

Overview - Transmission, Vehicles Without Self-Locking Center Differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Gear Set
- Removing and Installing. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Hydraulic Pressure Reservoir
- Removing and Installing. Refer to GEAR ACTUATOR MODULE AND HYDRAULIC PRESSURE RESERVOIR, REMOVING AND INSTALLING .
- Draining. Refer to ATF PUMP, DEACTIVATING AND DRAINING THE HYDRAULIC PUMP RESERVOIR .
- Disposing. Refer to HYDRAULIC PRESSURE RESERVOIR, DISPOSING .
- Dual Clutch
- Removing and Installing. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .
- Flywheel
- Removing and Installing. Refer to FLYWHEEL, REMOVING AND INSTALLING .
- Alignment Sleeve
- Seal
- Replace after removing
- Transmission Housing Bolt
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
- Transmission Fluid Pump
- Removing and installing. Refer to the appropriate Service Information. .
- Bolt
- Tightening specification. Refer to the appropriate Service Information. .
- Transmission Housing
- Removing and Installing. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING .
- Circlip
- Replace after removing
- Oil Guide Piece Drive Axle
- Replace after removing
- Cap
- Replace after removing
- Alignment Sleeve
- Seal
- Replace after removing
- Bolt
- With seal
- Replace after removing
- Tightening specification and sequence. Refer to Fig 3.
Transmission Housing - Tightening Specification and Sequence
-- Tighten the bolts in three steps in the sequence shown:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1 | -1 to 9- | Install by hand evenly until the bolt head contacts the transmission housing |
| 2 | -1 to 9- | Tighten one after the other to 10 Nm + 90° |
| 3 | -Arrow- | Tighten the remaining bolts clockwise to 10 Nm + 90° |
Gear Set - Tightening Specification and Sequence
-- Push the centering bracket -A- all the way in.
Bolt -6- without centering sleeve.
-- Tighten the bolts in two steps in the sequence shown:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1 | -1 to 6- | Install by hand evenly until the bolt head contacts the transmission housing |
| 2 | -1 to 6- | "Steel bolts" = Tighten one after the other to 15 Nm + 90° |
| "Aluminum bolts" = Tighten one after the other to 10 Nm + 120° |
