Output Shaft Roller Bearing, Replacing, Vehicles without Self-Locking Center Differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

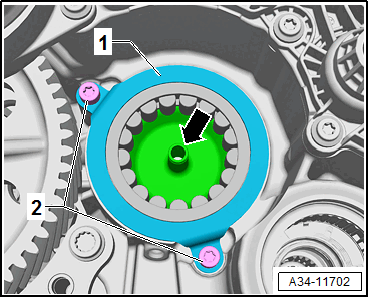

-- Remove the bolts -2-.
-- Remove the bearing shell -1-.
-- Break off the tab -arrow- of the oil guide shell using pliers.
- It is necessary to replace the oil guide shell!
Roller Sleeve for the Output Shaft 1, Extend, Vehicles without Self-Locking Center Differential

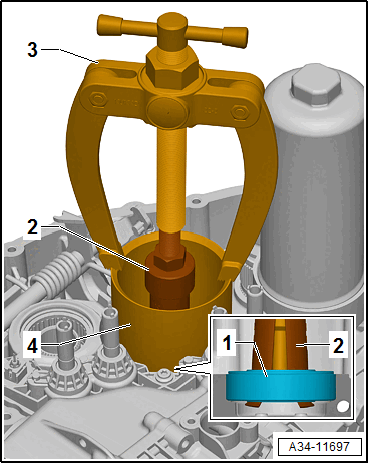

Fig 1: Roller Sleeve for the Output Shaft -1-, Extend, Vehicles without Self-Locking Center Differential
2 - Internal Puller:VAS 251 615
3 - Counter Support:VAS 251 623
4 - Bearing Installer - Wheel Bearing:3144
Roller Sleeve for the Output Shaft 1, Driving In, Vehicles without Self-Locking Center Differential

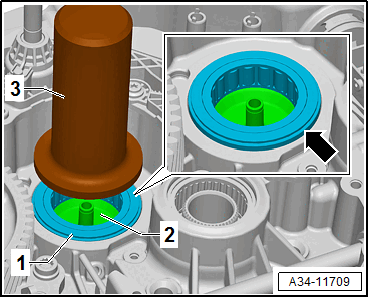

Fig 2: Roller Sleeve for the Output Shaft -1-, Driving In, Vehicles without Self-Locking Center Differential
3 -
Seal Installer - Gearbox:3295
Installation position of the roller sleeve: the surrounding groove -arrow- points to the Seal Installer:3295 .
- Beforehand, insert a new oil guide shell -2-.
-- Lay the bearing shell -1- onto the roller sleeve.
-- Tighten the bolts -2- to the tightening specification.
