Clutch Housing, Servicing: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

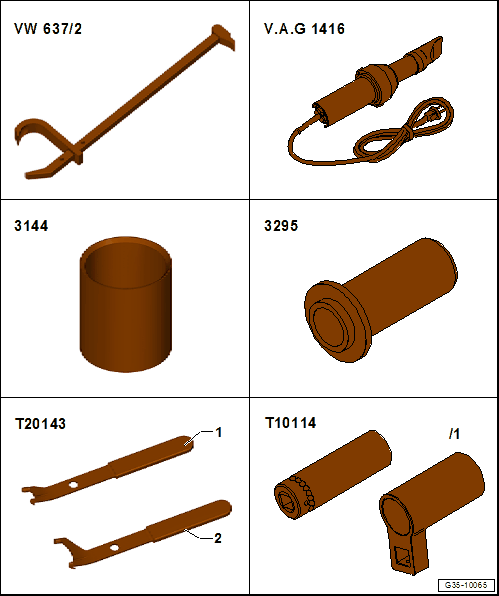

Special tools and workshop equipment required
- Puller - Grease Cap:VW637/2
- Hot Air Blower:V.A.G 1416 or Wiring Harness Repair Set - Hot Air Blower: VAS 1978/14A
- Bearing Installer - Wheel Bearing:3144
- Seal Installer - Gearbox:3295
- Puller - Crankshaft/Power Steering Seal:T20143
- Counterhold Tool:T10114

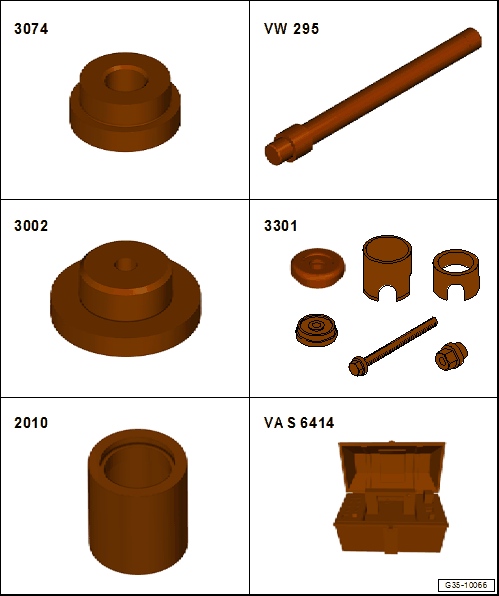

Special tools and workshop equipment required
- Bearing Installer - Wheel Bearing/Ball Bearing:3074
- Bearing/Bushing Installer - Multiple Use:VW295
- Press Piece - Output Shaft Gear/Final Drive Gear:3002
- Subframe Bushing Tool Kit:3301
- Press Piece - Trailing Arm:2010
- Inductive Heater:VAS 6414
Special tools and workshop equipment required
