Transmission Fluid Pan, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Removed transmission, if transmission is installed: Refer to the appropriate Service Information. .

CAUTION:

The system is under pressure.

Deactivate the ATF pump and drain the hydraulic pressure reservoir before removal.
Refer to ATF PUMP, DEACTIVATING AND DRAINING THE HYDRAULIC PUMP RESERVOIR

-- Drain the ATF. Refer to the appropriate Service Information. .

-- 3.0 TDI with low pressure EGR: remove the rear EGR cooler. Refer to the appropriate Service Information. .

-- Remove the 2.0 TFSI with particulate filter. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING - 2.0L DMSA , PARTICULATE FILTER, REMOVING AND INSTALLING - 2.0L DPVA .

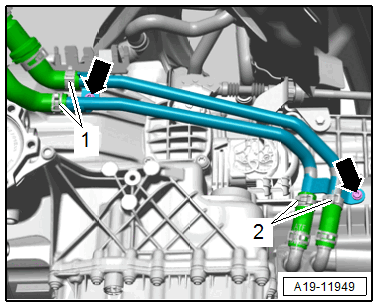

-- Remove the bolts -arrows-.

Courtesy of AUDI

The coolant hose -2- stays connected to the ATF cooler.

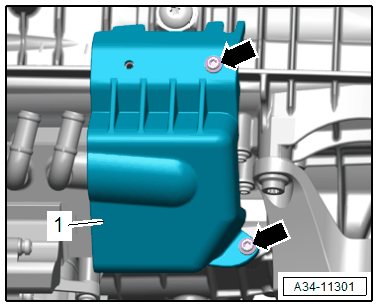

-- Remove the bolts -arrows- and remove the protective plate -1-.

Courtesy of AUDI

-- Place the Used Oil Collection and Extraction Unit:SMN372500 underneath.

Fig 1: ATF Cooler

Courtesy of AUDI

-- Only loosen the bolts -2- and remove the bolts -1 and 3-.

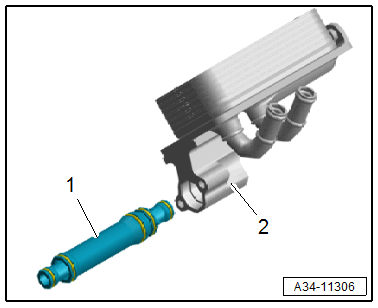

-- Remove the ATF pipe -1- and the ATF cooler -2- from the oil pan.

Courtesy of AUDI

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS 6122 .

-- Remove the bolts in the sequence -25 to 1- and remove the transmission fluid pan.

Fig 2: Oil Pan Bolts Tightening Sequence

Courtesy of AUDI
