Transmission Fluid Pan, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
TIP:
- Replace the seal and ATF pipe after removal.
- For vehicles with an aluminum transmission fluid pan, a plastic transmission fluid pan is available as a replacement part.

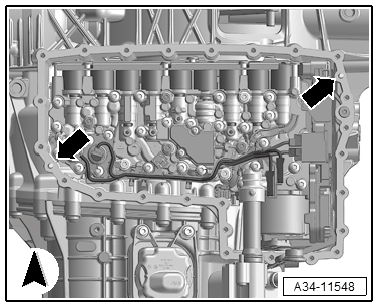

- During the conversion both the centering pins -arrow- must be removed from the transmission housing.
- At the same time pay attention that the sealing surface is not damaged.
-- Install the ATF cooler. Refer to the appropriate Service Information. .
-- Fill the ATF. Refer to the appropriate Service Information. .
