Transmission Fluid Auxiliary Hydraulic Pump -V552-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Contamination damages the Mechatronic.

- A clean work environment is required for working on the Mechatronic.

CAUTION:

The system is under pressure.

Deactivate the ATF pump and drain the hydraulic pressure reservoir before removal.

-- Using the Vehicle Diagnostic Tester, empty the ATF pressure reservoir in the Transmission Control Module -J217- and disable the Transmission Fluid Auxiliary Hydraulic Pump -V552-. Refer to ATF PUMP, DEACTIVATING AND DRAINING THE HYDRAULIC PUMP RESERVOIR .

-- Remove the Mechatronic. Refer to MECHATRONIC, REMOVING AND INSTALLING .

-- Remove the Transmission Control Module -J217-. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .

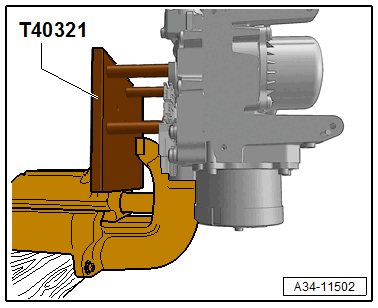

-- Secure the Mechatronic on the vise as shown using the Support:T40321 .

Courtesy of AUDI

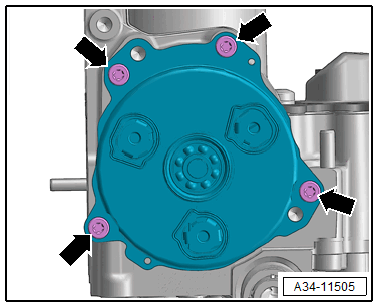

-- Remove the bolts -arrows-.

Courtesy of AUDI

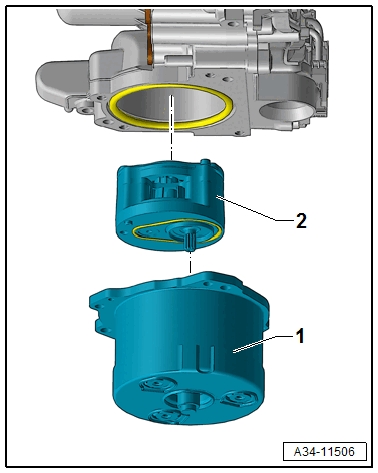

-- Remove the ATF motor -1- and the ATF pump -2- downward, at the same time pay attention that the ATF pump -2- does not fall down.

Courtesy of AUDI
