Transmission Fluid Auxiliary Hydraulic Pump -V552-, REMOVING AND INSTALLING: Installing: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Contamination damages the Mechatronic.
- A clean work environment is required for working on the Mechatronic.

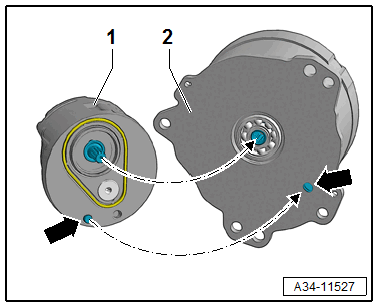

-- Place the ATF pump on the ATF motor at the same time pay attention to the correct alignment of the anti-twist mechanism -arrows-.

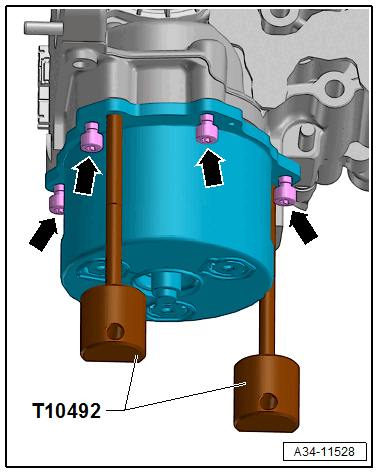

-- Drive the ATF motor and ATF pump using the Locking Pin: T10492 in the valve body.
-- With the Locking Pin:T10492 install and tighten the bolts evenly all the way.
-- Remove the Locking Pin:T10492 .
-- Install the Transmission Control Module -J217-. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .
- After replacing the Transmission Fluid Auxiliary Hydraulic Pump -V552- the function "calibrating the fluid auxiliary hydraulic pump" must be performed using the Vehicle Diagnostic Tester.
