Transmission Control Module -J217-, REMOVING AND INSTALLING: Installing

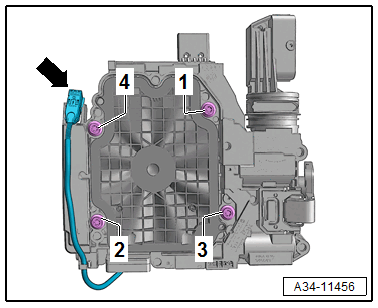

Fig 1: Transmission Control Module -J217- Bolts Tightening Sequence

Courtesy of AUDI

Install in the reverse order of removal while noting the following:

• Before installing the control module, clean the threaded holes of oil and debris.

-- Push the control module evenly on the valve body and tighten the bolts in the sequence -1 to 4- to the tightening specification.

TIP:

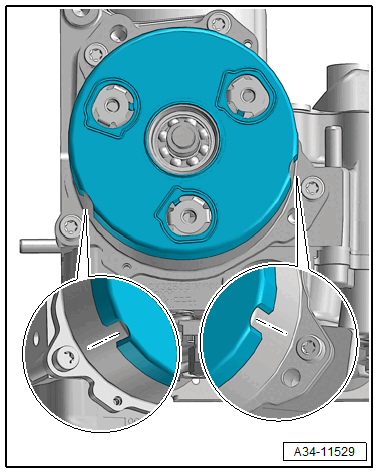

• A protector is located on the ATF pump.

  Courtesy of AUDI

• Pay attention to the correct assembly.

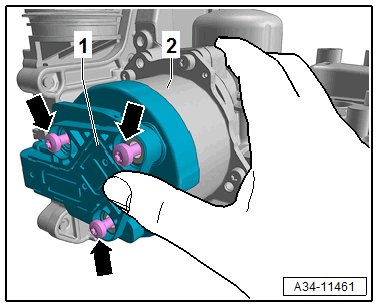

-- Push in the sensor arm -1- on the ATF pump -2- by hand and tighten the bolts -arrows- hand-tight.

Courtesy of AUDI

-- Tighten the bolts to the specification in the following sequence: -1 through 3-.

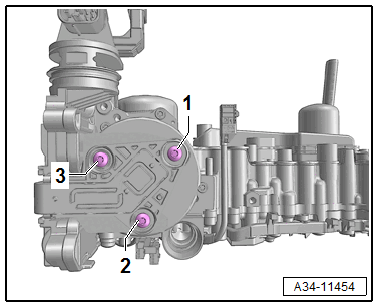

Fig 2: Sensor Arm Bolts Tightening Sequence

Courtesy of AUDI

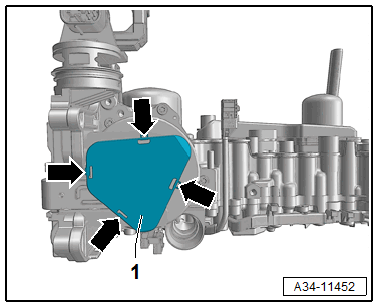

-- Install the cover -1- for the sensor arm -arrows-.

Courtesy of AUDI

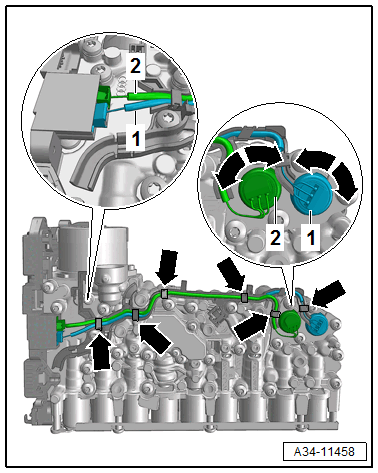

-- Install the Hydraulic Pressure Sensor 1 -G545- and Hydraulic Pressure Sensor 2 -G546-.

Courtesy of AUDI

• Do not interchange the connectors.
• Make sure that the connection is correct as shown -1 and 2-. Refer to Hydraulic Pressure Sensor 1 -G545- AND Hydraulic Pressure Sensor 2 -G546-, REMOVING AND INSTALLING .

-- Install the Mechatronic. Refer to MECHATRONIC, REMOVING AND INSTALLING .

• If the Transmission Control Module -J217- was replaced, the function "control module replacing" must be performed using the Vehicle Diagnostic Tester.
• If the valve body is replaced, the "valve body, replacing" function must be performed using the Vehicle Diagnostic Tester.

-- Connect the Vehicle Diagnostic Tester with the vehicle.

• Network plan or control module list
• 02 - Transmission Electronics, Guided Functions
• 02 - Control Modules/Mechatronic, Replacing
• or
• 02 - Valve Body, Replacing

-- Start the selected program and follow the instructions in the display of the Vehicle Diagnostic Tester.
