Solenoid Valves And Pressure Regulating Valves In Valve Body, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Check before the repair, if the necessary replacement parts are available. Refer to the appropriate Electronic Parts Information.

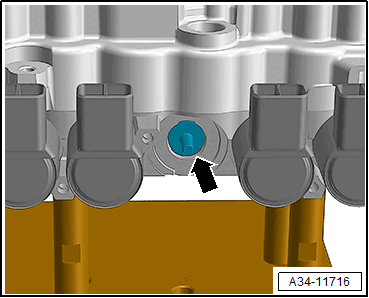

Do not remove the clutch piston valve -arrow- it remains in the valve body.
Due to the exact positioning of components, reinstallation is not possible, since the valve body would be damaged.
-- Remove the Mechatronic. Refer to MECHATRONIC, REMOVING AND INSTALLING .
-- Remove the Transmission Control Module -J217-. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .
-- Remove bolts -arrows- and remove the contact element.

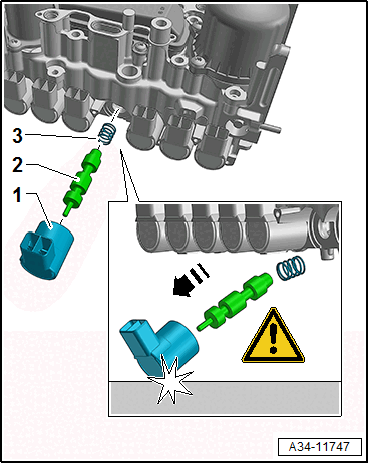

- Hold the Solenoid Valve 5 -N92- -1- when removing the mounting rail.
- The clutch cooling valve -2- and the spring -3- must remain in the valve body.
-- Remove the bolts -arrows- and remove the mounting rail.

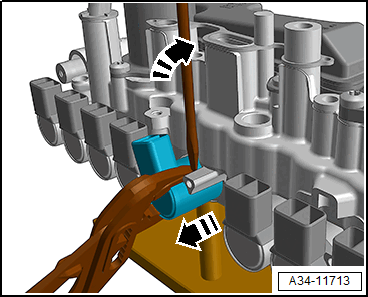

-- Remove the valves if necessary carefully pry out as shown.
