Solenoid Valves And Pressure Regulating Valves In Valve Body, Removing And Installing: Installing: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Coat the valve surface with ATF and push in the valves all the way.

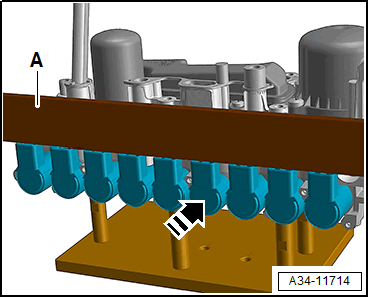

-- Hold the Solenoid Valve 5 -N92- -arrow-.
-- Using the Precision Straight Edge (2 pc.):T40100 align the connection evenly as shown.

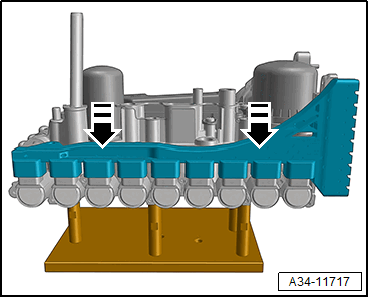

-- Connect the contact element evenly.

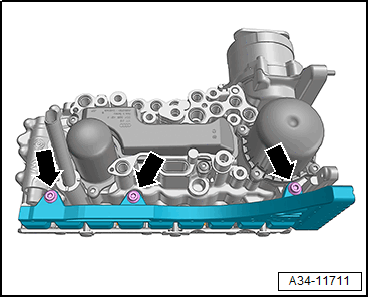

-- Install the mounting rail and tighten the bolts -arrows- to the tightening specification.

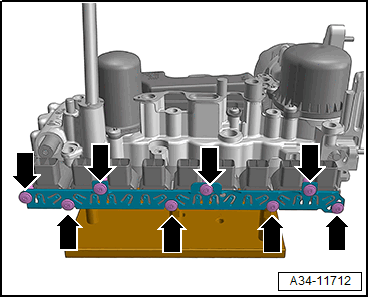

-- Tighten the bolts -arrows- to the tightening specification.
-- Install the Transmission Control Module -J217-. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .
-- Install the Mechatronic. Refer to MECHATRONIC, REMOVING AND INSTALLING .
- After replacing the Solenoid Valves -- the function "Calibrating valves" must be performed using the Vehicle Diagnostic Tester.
