MECHATRONIC, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Install in the reverse order of removal while noting the following:

CAUTION:

Risk of damaging the ATF pump.

- The pump for the Transmission Fluid Auxiliary Hydraulic Pump -V552- can start up on a non-deactivated control module immediately after installing the connector.

- The pump can be damaged, by this or the residual oil can flow out under high pressure.

- To prevent this install the transmission control module connector after installing the oil pan and the transmission filled with ATF.

Only install clean parts: remove the new mechatronic from the packaging immediately prior to installation.

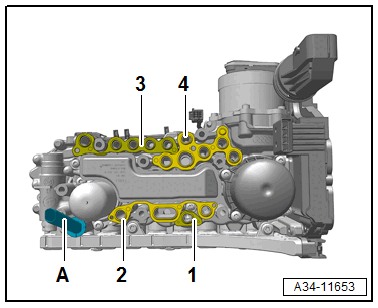

-- Replace the seals -1, 2, 3 and 4-.

Courtesy of AUDI

TIP:

The seal -1- is only for vehicles with a Parking Lock Solenoid -N486-.

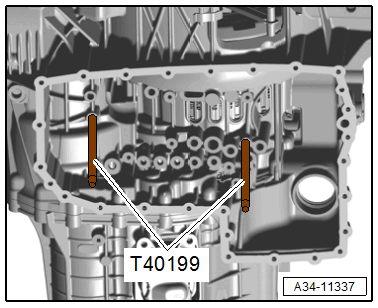

Install the two Oil Sump Assembly Pin:T40199 hand-tight as shown.

Courtesy of AUDI

The Oil Sump Assembly Pin:T40199 prevent the Mechatronic from tilting when it is being installed.

-- Replace the Mechatronic evenly and install the bolts -6 and 7- hand-tight.

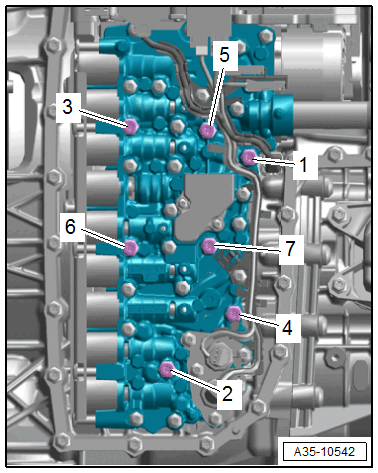

Fig 1: Mechatronic Bolts Loosening Sequence

Courtesy of AUDI

-- Remove the Oil Sump Assembly Pin:T40199 .

-- Install the remaining bolts according to the tightening sequence. Refer to Figure.

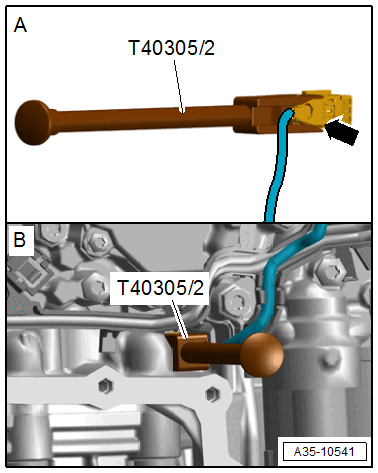

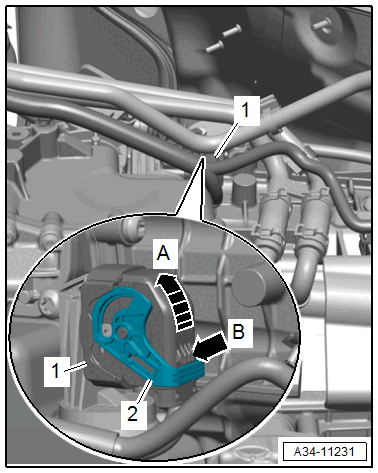

-- Install the connector with the Assembly Tool:T40305 .

Courtesy of AUDI

-- Install the transmission fluid pan. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .

-- Tighten the ATF drain plug.

-- Fill 3.5 liters of AFT in the transmission using the Pressurized Gearbox Oil Filler Kit:VAS 6617 . Refer to the appropriate Service Information. .

Courtesy of AUDI

TIP:

The ATF level can be adjusted after operating the control module.

For the following components after replacing a set up must be performed:

Transmission Control Module -J217-
Valve Body --
Dual-Clutch Transmission Mechatronic -J743-
Drive Position Sensor -G676-. Refer to the appropriate Service Information. .
Transmission Fluid Auxiliary Hydraulic Pump -V552-. Refer to Calibrating the auxiliary hydraulic pump .
Gear Position Distance Sensors 1 to 4 -G487/G488/G489/G490-. Refer to GEAR ACTUATOR MODULE AND HYDRAULIC PRESSURE RESERVOIR, REMOVING AND INSTALLING .
Automatic Transmission Pressure Regulating Valves 1 and 2 -N215/N216-. Refer to Clutch Valve Calibration .
Solenoid Valves and Pressure Regulating Valves in Valve Body --. Refer to Cooling Oil/Clutch Calibration .

-- Connect the Vehicle Diagnostic Tester with the vehicle.

Network plan or control module list
02 - Transmission Electronics, Guided Functions
02 - Control Modules/Mechatronic, Replacing

-- Start the selected program and follow the instructions in the display of the Vehicle Diagnostic Tester.

-- Checking the ATF level. Refer to the appropriate Service Information. .

-- Install the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Install the noise insulation. Refer to Noise Insulation .
