MISFUELING Guard, Removing And Installing: Removing

Observe the safety instructions. Refer to SAFETY PRECAUTIONS .

Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Open the fuel filler door.

Fig 1: Fuel Filler Cap

Courtesy of AUDI

-- Clean the area around the fuel filler neck.

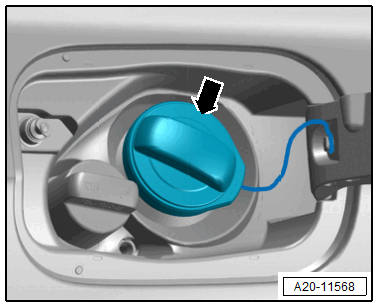

-- Remove the fuel filler neck cap -arrow-.

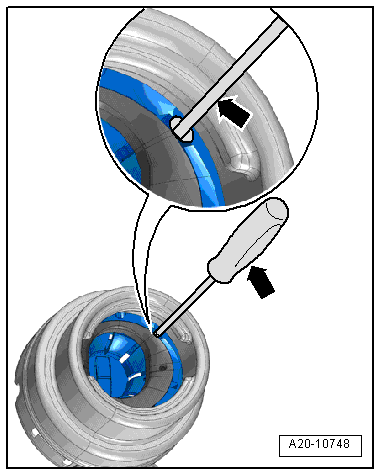

-- Release the tab for the locking ring using the TORX screwdriver -arrow-.

Fig 2: Releasing Tab For Locking Ring Using TORX(R) Screwdriver

Courtesy of AUDI

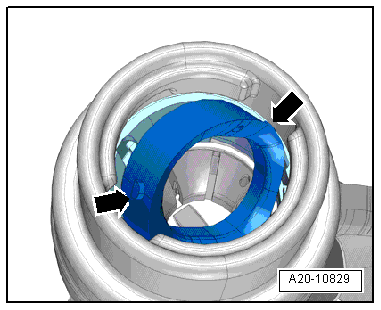

-- Insert the locking ring pliers into both holes -arrows- on the locking ring.

Fig 3: Identifying Installation Of Locking Ring With Locking Ring Pliers

Courtesy of AUDI

-- Turn the locking ring counter-clockwise approximately 25°.

-- Tilt the locking ring in the fuel filler neck and remove it through the cap openings -arrows-.

Fig 4: Tilting Locking Ring Inside Fuel Filler Tube To Remove It Through Fuel Cap Opening

Courtesy of AUDI

-- Remove the misfueling guard from the fuel filler neck -arrow-. Use locking ring pliers if necessary.

Fig 5: Identifying Removal Of Incorrect Fuel Protection From Fuel Filler Tube
