MISFUELING Guard, Removing And Installing: Installing

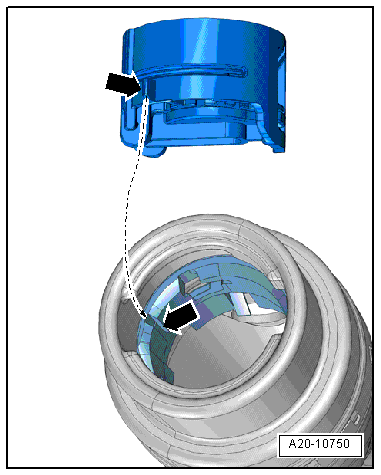

Fig 1: Fitting Fuel Protection In Groove In Fuel Filler Tube

Courtesy of AUDI

Install in the reverse order of removal while noting the following:

-- Insert the misfueling guard into the fuel filler neck.

• The tab on the misfueling guard must engage into the groove on the fuel filler neck -arrows-.

-- Turn the locking ring 25° clockwise and install it using the locking ring pliers.

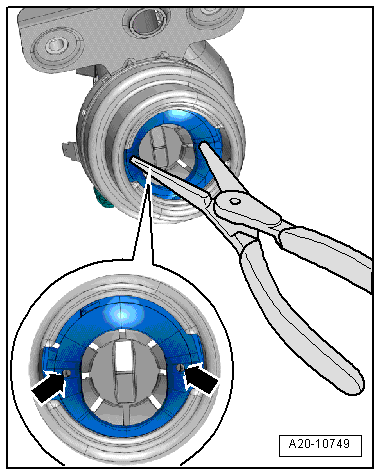

Fig 2: Identifying Installation Of Locking Ring With Locking Ring Pliers

Courtesy of AUDI

-- If installed correctly, the markings on the locking ring and on the fuel filler neck will align -arrows-.

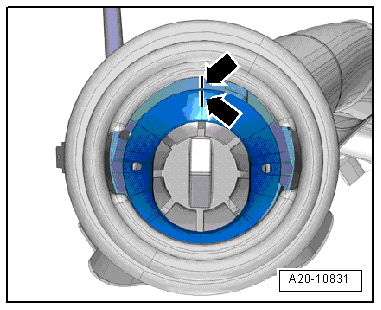

Fig 3: Aligning Markings On Locking Ring And On Fuel Filler Tube

Courtesy of AUDI

Function Test:

• The locking latch for the misfueling guard cannot open without the Fuel Funnel Fuel Funnel:T40256  .
• The Fuel Funnel Fuel Funnel:T40256  must be inserted all the way in the fuel filler neck.
