Draining A Fuel Tank More Than 3/4 Full, TDI Vehicles

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Fuel Extractor:VAS 5190A

Fig 1: Fuel Extraction Device VAS5190A
Courtesy of AUDI
Fuel Funnel:T40256 or Emergency Refueling Funnel

Fig 2: A7 Sportback: Funnel
Courtesy of AUDI

Procedure

-- Pay attention to the safety precautions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Open the fuel filler door.

-- Clean the area around the fuel filler neck.

-- Remove the fuel filler neck cap -arrow-.

Fig 3: Fuel Filler Cap

Courtesy of AUDI

NOTE:

The adapter -1- and cone piece -2- from the Fuel Extraction Device Fuel Extractor:VAS 5190A will not be used.

Fig 4: Fuel Extracting Unit VAS5190 Demension -a-

Courtesy of AUDI

Push the adapter -1- on the hose slightly reward.

-- Attach the insulating tape -arrow- to the hose at a distance -a- from the end of the suction hose.

Dimension -a- = 1100 mm

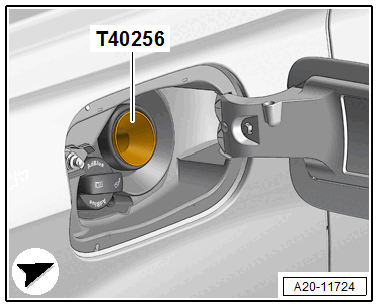

-- Insert the Fuel Funnel:T40256 all the way into the fuel filler neck.

Courtesy of AUDI

NOTE:

A flap -1- is located in the fuel tank on the lower end of the fuel filler neck -2-. It must not be damaged by the suction hose from the Fuel Extraction Device Fuel Extractor:VAS 5190A . Only slide the hose in as far as the mark that was made earlier -arrow-.

Courtesy of AUDI

-- Slide the suction hose from the Fuel Extraction Device Fuel Extractor:VAS 5190A far enough into the fuel tank until the marking applied earlier -arrow- is on the edge of the fuel filler tube with the funnel -3-.

-- Empty the fuel tank through the fuel filler tube.

-- Carefully remove the suction hose.

NOTE:

When no more fuel can be extracted, the tank is emptied only enough for the sealing flange to be opened without danger.

-- Open the sealing flange. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING, TDI VEHICLES .

Fig 5: Identifying Fuel Extraction Unit

Courtesy of AUDI

-- Pull the sealing flange out of the opening in the fuel tank just a little.

-- Slide the suction hose from the Fuel Extraction Unit Fuel Extractor:VAS 5190A into the fuel tank.

-- Extract the fuel from both fuel tank chambers through the opening using the Fuel Extractor:VAS 5190A .

The remaining steps to be performed will depend on the issue.

-- Replace the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

-- Remove the Fuel Level Sensor -G-. Refer to Fuel Level Sensor -G-, REMOVING AND INSTALLING .

-- Remove the fuel tank. Refer to FUEL TANK, REMOVING AND INSTALLING .
