Fuel Pump Control Module -J538-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .
-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Remove the bench seat / right single seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
-- Remove the rear sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

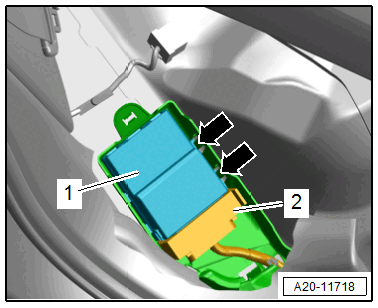

-- Release the catches -arrows- using a screwdriver and remove the Fuel Pump Control Module -J538- -item 1- from the bracket.
-- Remove the fuel pump control module from under the sill panel/side trim panel.
-- Release the connector safety catch and disconnect the connector -2- for the Fuel Pump Control Module -J538-.
