Fuel Level Sensor -G-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Pay attention to the safety precautions. Refer to SAFETY PRECAUTIONS .
-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Remove the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

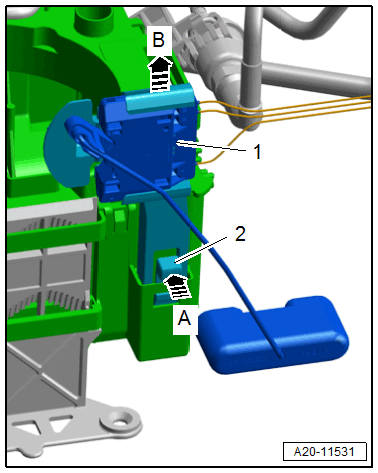

-- Reach through the installation opening in the fuel tank, release the catch -2- -arrow A- and at the same time, remove the Fuel Level Sensor -G- -item 1- from the mount on the baffle housing -arrow B-.
-- Carefully remove the Fuel Level Sensor -G- from the fuel tank opening.
NOTE:
Be careful not to bend the floater arm on the fuel level sensor when removing.
