Tank Switch-Off Valve -N288-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .
-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Remove the right rear wheel housing liner. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .
-- Remove the EVAP canister. Refer to EVAP CANISTER, REMOVING AND INSTALLING .

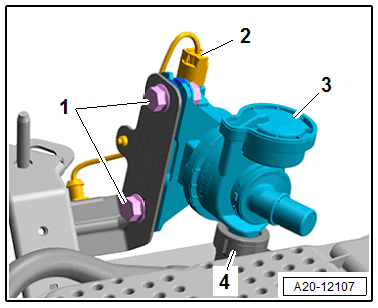

-- Disconnect the connector -2- to release the connector safety catch.
-- Remove the bolts -1-.
-- Disconnect the vent line -4-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
-- Remove the Tank Switch-Off Valve -N288- -item 3-.
