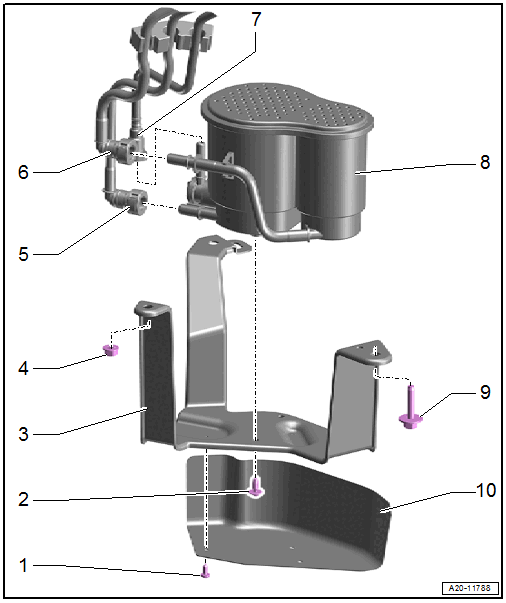

Overview - EVAP System, Without Tank Leak Diagnosis
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview only applies to TFSI vehicles.
- Bolt
- Quantity: 3
- 8 Nm
- Bolt
- Quantity: 3
- 8 Nm
- Bracket
- Nut
- 20 Nm
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Clipped to the underbody
- Vent Line
- Vents out to the right rear under the wheel housing liner
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- From the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- EVAP Canister
- Component location: right rear
- Removing and installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 20 Nm
- Heat Shield
