OVERVIEW - EVAP SYSTEM, WITH Fuel Tank Pressure Sensor -G400-
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

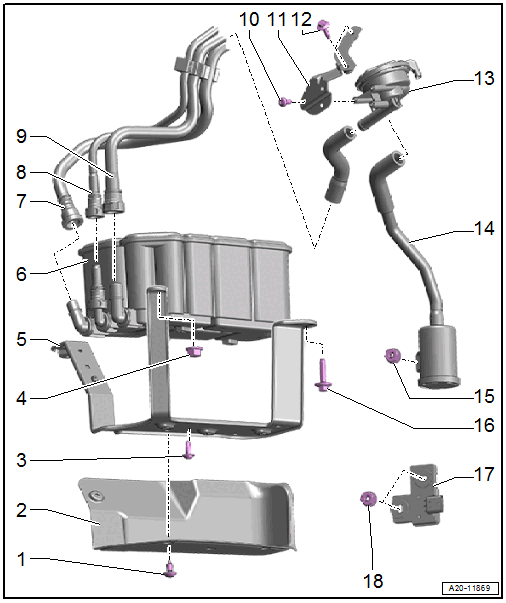

- Bolt
- Quantity: 4
- 1.6 Nm
- Heat Shield
- Bolt
- Quantity: 4
- 4 Nm
- Nut
- 20 Nm
- Bracket
- EVAP Canister
- Component location: right rear
- Removing and installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING .
- Bleeder Line
- From the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Clipped to the underbody
- Bleeder Line
- To the Fuel Tank Pressure Sensor -G400-
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bolt
- Quantity: 3
- 1.5 Nm
- Bracket
- Bolt
- Quantity: 2
- 8 Nm
- Fuel Tank Pressure Sensor -G400-
- Removing and installing. Refer to Fuel Tank Pressure Sensor -G400-, REMOVING AND INSTALLING .
- Vent Line
- Vents out to the right rear under the wheel housing liner
- Nut
- 2.1 Nm
- Bolt
- Quantity: 2
- 20 Nm
- Fuel Tank Leak Detection Control Module -J909-
- Component location: right front on the fuel tank
- Removing and installing. Refer to Fuel Tank Leak Detection Control Module -J909-, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 2 Nm
