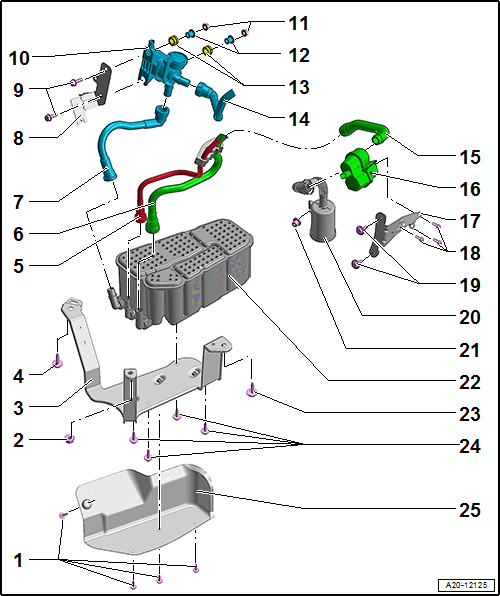

OVERVIEW - EVAP SYSTEM, WITH Fuel Tank Leak Detection Module -GX36-
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 4
- 1.6 Nm
- Nut
- 20 Nm
- Bracket
- Bolt
- 20 Nm
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Bleeder Line
- To the Fuel Tank Leak Detection Module -GX36-
- Bleeder Line
- To Tank Switch-Off Valve -N288-
- Bracket
- Bolt
- Quantity: 2
- Tank Switch-Off Valve -N288-
- Installed depending on the vehicle version
- Removing and installing. Refer to Tank Switch-Off Valve -N288-, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- 20 Nm
- Spacer Sleeve
- Rubber Bushing
- Bleeder Line
- To the tank
- Bleeder Line
- To the Fuel Tank Leak Detection Module -GX36-
- Fuel Tank Leak Detection Module -GX36-
- Removing and installing. Refer to Fuel Tank Leak Detection Module -GX36-, REMOVING AND INSTALLING .
- Bracket
- Bolt
- Quantity: 3
- 1.8 Nm
- Bolt
- Quantity: 2
- 8 Nm
- Air Filter
- Removing and Installing. Refer to VENT LINE WITH FILTER, REMOVING AND INSTALLING .
- Nut
- 2.1 Nm
- EVAP Canister
- Component location: right rear
- Removing and Installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Bolt
- Quantity: 4
- 4 Nm
- Heat Shield
