Fuel Tank Pressure Sensor -G400-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .
-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Remove the right rear wheel housing liner. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

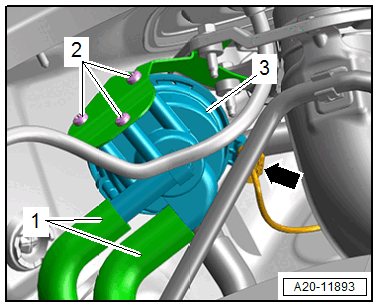

-- Release the connector safety catch and disconnect the connector -arrow-.
-- Remove the vent and bleed lines -1- on the fuel tank pressure sensor.
-- Remove the bolts -2-.
-- Remove the fuel tank pressure sensor -3-.
