Fuel Tank Leak Detection Module -GX36-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Observe the safety instructions. Refer to SAFETY PRECAUTIONS .
-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Remove the right rear wheel housing liner. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .
-- Remove the nut -1- and disengage the filter.

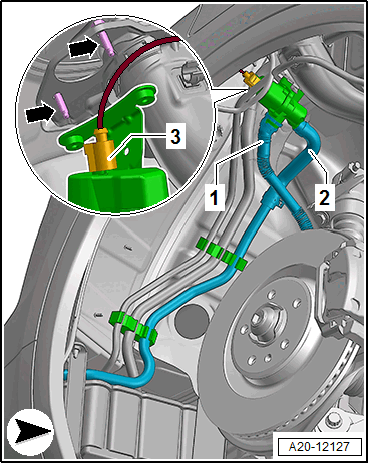

-- Remove the bolts -arrows- and disengage the Fuel Tank Leak Detection Module -GX36- from the fuel filler neck.
-- Release the connector safety catch and disconnect the connector -item 3-.
-- Disconnect the bleeder lines -1 and 2- from the Fuel Tank Leak Detection Module -GX36-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
-- Remove the Fuel Tank Leak Detection Module -GX36-.
