Fuel Tank Leak Detection Control Module -J909-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right rear underbody trim panel. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

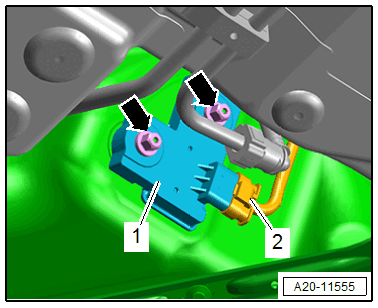

-- Disconnect the connector -2- to release the connector safety catch.
-- Remove the nuts -arrows- and disengage the fuel tank leak detection control module -1- from the fuel tank.
