Connection Diagram - EVAP System, Without Tank Leak Diagnosis

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The connection diagram applies to TFSI vehicles.

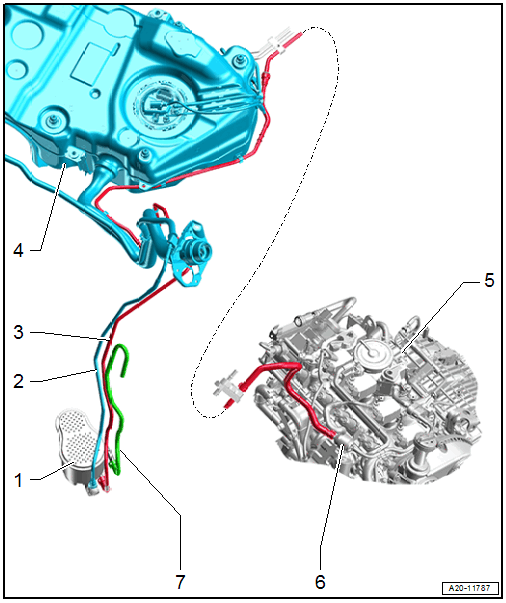

GWWA20-11787Courtesy of AUDI
  1. EVAP Canister
  2. Bleeder Line
    • From the fuel tank
  3. Bleeder Line
    • To the EVAP Canister Purge Regulator Valve 1 -N80-
  4. Fuel Tank
  5. Engine
  6. EVAP Canister Purge Regulator Valve 1 -N80-
  7. Vent Line
    • Vents out to the right rear under the wheel housing liner
