CONNECTION DIAGRAM - EVAP SYSTEM, WITH Fuel Tank Pressure Sensor -G400-

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

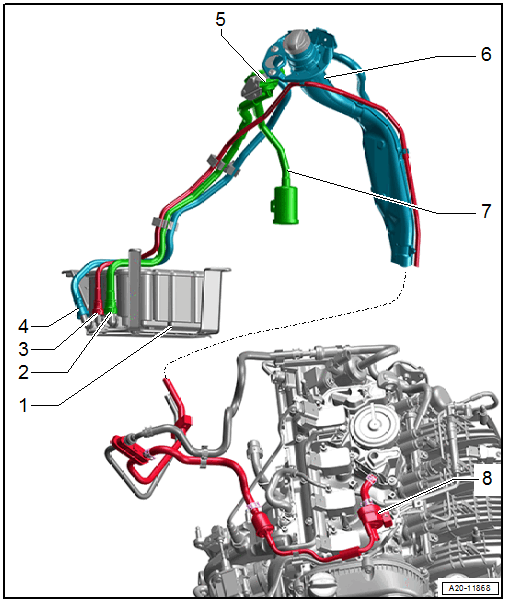

GWWA20-11868Courtesy of AUDI
  1. EVAP Canister
  2. Bleeder Line
    • To the Fuel Tank Pressure Sensor -G400-
  3. Bleeder Line
    • To the EVAP Canister Purge Regulator Valve 1 -N80-
  4. Bleeder Line
    • From the fuel tank
  5. Fuel Tank Pressure Sensor -G400-
  6. Fuel Tank
  7. Vent Line
    • Vents out to the right rear under the wheel housing liner
  8. EVAP Canister Purge Regulator Valve 1 -N80-
