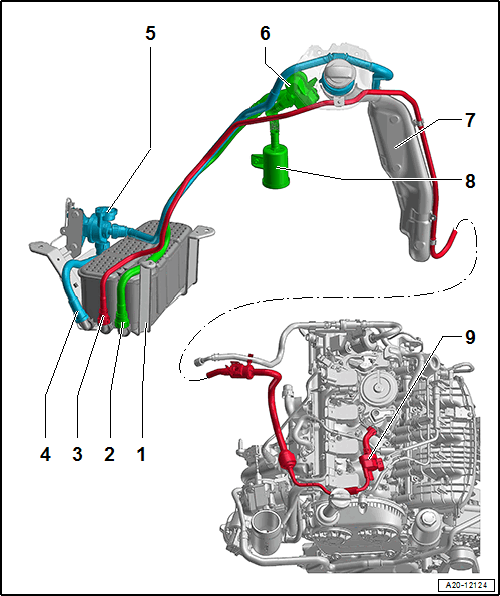

CONNECTION DIAGRAM - EVAP SYSTEM, WITH Fuel Tank Leak Detection Module -GX36-
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- EVAP Canister
- Bleeder Line
- To the Fuel Tank Leak Detection Module -GX36-
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Bleeder Line
- To Tank Switch-Off Valve -N288-
- Tank Switch-Off Valve -N288-
- Installed depending on the vehicle version
- Fuel Tank Leak Detection Module -GX36-
- Protective Plate
- For the fuel filler neck
- Installed depending on the market
- Vent Line
- Vents out to the right rear under the wheel housing liner
- EVAP Canister Purge Regulator Valve 1 -N80-
- The Tank Ventilation Pressure Sensor 1 -G950- is installed in the breather line to the EVAP canister, depending on the emissions standard.
