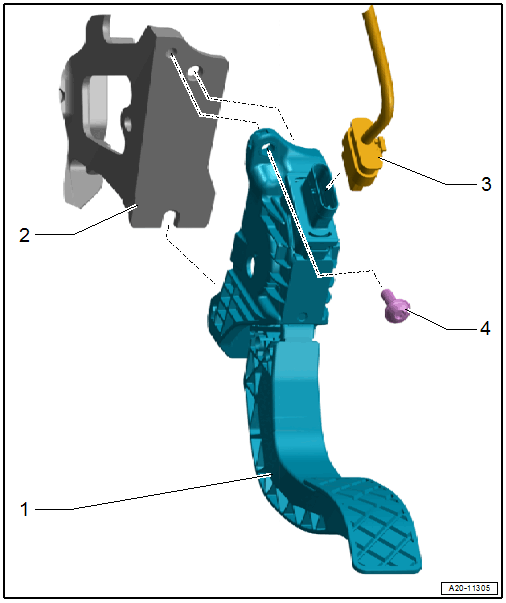

Overview - Accelerator Pedal Module
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Accelerator Pedal Module -GX2-
- With Accelerator Pedal Position Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-
- Check using the Vehicle Diagnostic Tester.
- Removing and Installing. Refer to Accelerator Pedal Module -GX2-, REMOVING AND INSTALLING .
- Depending on the engine/transmission combination, an adaptation must be performed after replacing.
- If a corresponding menu item is in the engine electronics tree structure under "functions", perform the adaptation using the Vehicle Diagnostic Tester.
- Pedal Bracket
- Connector
- Make sure it is attached securely
- Bolt
- 8 Nm
