Accelerator Pedal Module -GX2-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

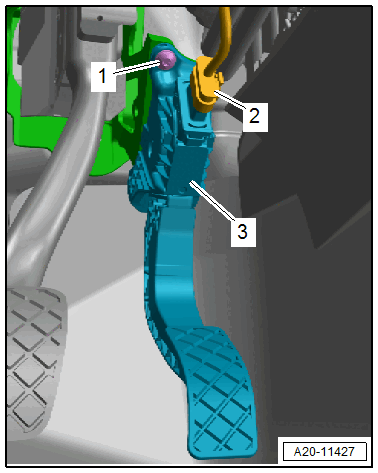

Fig 1: Accelerator Pedal Module GX2

Courtesy of AUDI

-- Remove the bolt -1-.

-- Disengage the bottom of the accelerator pedal module -3- from the pedal bracket and remove.

-- Press the release and disconnect the connector -2-.
