Input Shaft Seal, Replacing, Clutch Cover: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- The clutch is installed.
CAUTION:
There is a risk of damaging the clutch from mishandling.
- The shaft seal can only be replaced when the clutch is installed.
-- Remove the flywheel. Refer to FLYWHEEL, REMOVING AND INSTALLING .

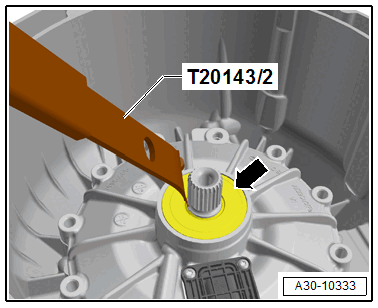

-- Pry out the shaft seal -arrow- carefully with the Puller - Crankshaft/Power Steering Seal:T20143 .
- Do not damage the contact surface on the shaft.
